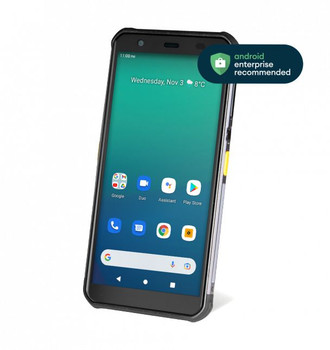

Newland Megattera Pro Mt9356 Rugged Handheld Terminal 2D 1D 4G 3G 2G Evdo Laser NLS-MT9356-W4-AS-XE

Newland Megattera Pro MT9356 Rugged Handheld Terminal - 2D, 1D - 4G, 3G, 2G, EVDO - Laser Light Source - CMOS - 610 mm - ARM - MT8781 - 14 cm (5.5") - LED - 720 x 1440 - Touchscreen - 6 GB RAM / 128 GB Flash - Bluetooth - Wireless LAN IEEE 802.11 a/b/g/n/ac/ax/k/v/r - GPS - Front Camera - Rear Camera - Android 13 - Phone-size - Battery Included - IP67 MT93 Megattera Pro Angled Shooter | Mobile Computer Running on Android 13, the MT93 Megattera Pro Angled Shooter combines a user-friendly interface with a rugged yet slim exterior. Thanks to its angled scan engine, it effectively reduces discomfort and strain that can arise from prolonged scanning. The device's powerful octa-core processor guarantees smooth performance throughout a full work shift, while the WiFi 6E and 4G guarantee steady, fast, and secure connectivity even in busy multi-user environments.
Software

Operating SystemAndroid 13

Interfaces/Ports

USBYes
USB Type-CYes

Touchscreen Information

TouchscreenYes
Multi-touch ScreenYes

Display & Graphics

Screen Resolution720 x 1440
Screen Size14 cm (5.5")
Display Screen TypeLED

Memory

Flash Memory128 GB
Standard Memory6 GB
Memory Card SupportedmicroSD

Power Description

Power SourceBattery
DC Power
AC Power

Camera

Rear CameraYes
Rear Camera Resolution13 Megapixel
Front CameraYes
Front Camera Resolution5 Megapixel

Technical Information

Brightness400 cd/m??
Connectivity TechnologyWired/Wireless
FeaturesGorilla Glass
Vibrator
Lightweight
Multi-color LED Notification
Vibration Alert
Drop Resistant
Sensor TypeProximity
Light Sensor
Gyroscope
Gravity Sensor
Compass
Scanning Distance610 mm
Light SourceLaser
Drop Specification
1.5m drops to concrete (for six sides, one drop per side)

Depth of FieldDepth of Field EAN 13 (13mil) 70mm-610mm
Depth of Field Code 39 (5mil) 110mm-290mm
Depth of Field PDF417 (6.7mil) 110mm-230mm
Depth of Field DataMatrix (10mil) 110mm-260mm
Depth of Field QR (15mil) 55mm-410mm

Scan Rate60 frames/second
Image Sensor TypeCMOS
Number of SIM Card Supported1
SIM Size SupportedeSIM
Illumination TypeLED
Scan ModeTrigger/Sense
Illumination ColorWhite
Google Mobile Services (GMS)Yes
Scanning Capability2D
1D
Image Sensor Resolution1280 x 800


Battery Information

Battery Capacity5000 mAh
Battery IncludedYes
Maximum Battery Run Time10 Hour
Battery Voltage3.85 V
Removable BatteryYes

Processor & Chipset

Processor Speed2.20 GHz
Processor TypeCortex A76
Processor ModelMT8781
Processor CoreDual-core (2 Core)
Processor ManufacturerARM

Physical Characteristics

Form FactorPhone-size
Length159 mm
Height15.9 mm
Width74 mm
RuggedYes
Weight (With Battery)277 g

Miscellaneous

Application/UsageEvent
Retail
Logistics
Hospitality
Warehouse
Package ContentsMT9356 Megattera Pro Mobile Computer
Battery

Ingress Protection (IP) RatingIP67

General Information

Product TypeHandheld Terminal
Manufacturer Part NumberNLS-MT9356-W4-AS-XE
newland-id
ManufacturerNewland
Product ModelMT9356
Product NameMT9356 Megattera Pro Mobile Computer
Product LineMegattera Pro
Brand NameNewland

Network & Communication

BluetoothYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax/k/v/r
Bluetooth StandardBluetooth 5.2 BLE
GPSYes
Cellular Data Connectivity Technology2G
3G
4G
EVDO
LTE
Cellular Network SupportedWCDMA
Near Field Communication (NFC)Yes
Global Navigation Satellite System (GNSS) SupportedGLONASS
