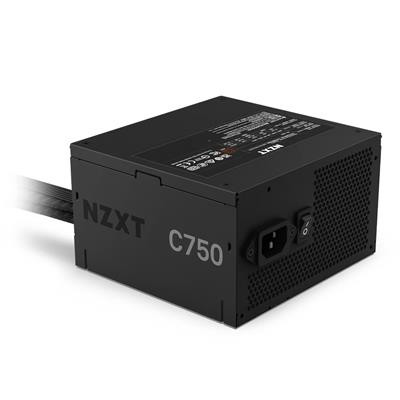

Nzxt 750W Atx Standard Power Supply - C750 - 80 Plus Bronze PA-7B2BB-UK

Product Group:

Power Supply Units



Manufacturer:

NZXT



SKU:
6418


Product Specifications



Product Name:

NZXT 750W ATX Standard Power Supply - C750 - 80 PLUS Bronze



Web Address:

nzxt.com



Model Number:

PA-7B2BB-UK



EAN:

5056547203607



Package Type:

Retail



Warranty:

3 Years



Type:

ATX 12V v2.53



Maximum Power:

750W



24-pin Main:

1



4+4-pin ATX/EPS:

2



6+2-pin PCI-E:

2



SATA Connector(s):

4



Peripheral Connector(s):

4



AC Input:
0-240VAC



Over Voltage Protection:

Yes



Under Voltage Protection:

Yes



Short Circuit Protection:

Yes



Over Power Protection:

Yes



Over Current Protection:

Yes



Over Temperature Protection:

Yes



Operating Temperature:

0-C to 40-C



M.T.B.F.:
0,000 hours



Colour:

Black



Cable Type:

Standard



Cable Length:

24-pin ATX Power: 600mm
4+4-pin CPU Power: 700mm
6+2-pin PCIe Power: 650 + 150mm
SATA Power: 500 + 150mm
Peripherals: 500 + 150mm



Cable Sleeving:

Nylon



Cooling System:

1 x 120mm Fan (FDB)



Noise:

39.92 dBA max



Product Width:
0mm



Product Length:
0mm



Product Height:

86mm



Special Features:

Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
Tested for safety at up to 40-C and features over-temperature and over-current protections.
Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.



Package Contents:

NZXT C750 Bronze PSU
UK Power Cord
Mounting Screws
