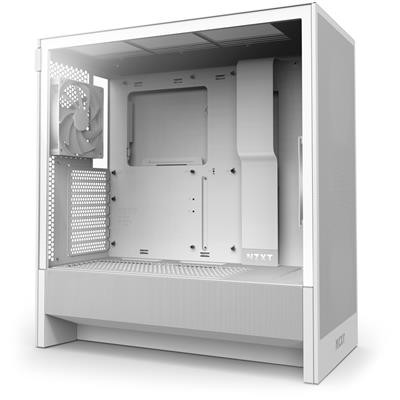

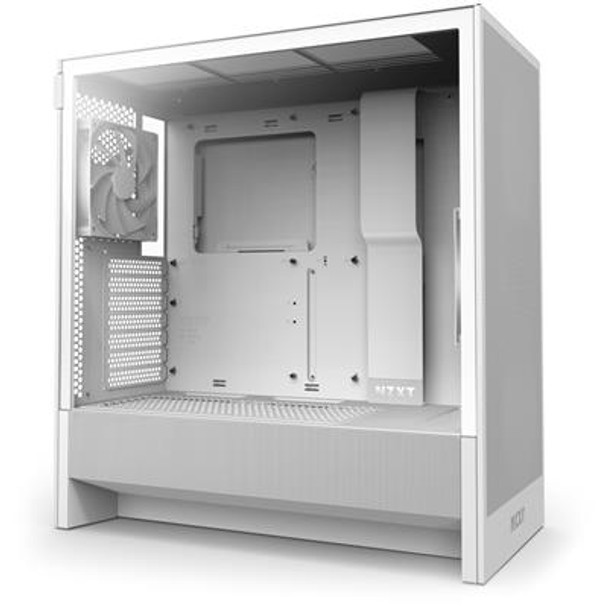

Nzxt H5 Flow Mid Tower Case White E-Atx/Atx/M-Atx/M-Itx CC-H52FW-01

Product Group:

Cases



Manufacturer:

NZXT



SKU:
6370


Product Specifications



Product Name:

NZXT H5 Flow Mid Tower Case White (E-ATX/ATX/M-ATX/M-ITX)



Web Address:

nzxt.com



Model Number:

CC-H52FW-01



EAN:

5056547205847



Package Type:

Retail



Warranty:

2 Years



Case Type:

Mid Tower



Colour:

White



Material Chassis:

SGCC Steel



Side Panel:

Tempered Glass



Front USB 3.2 Gen 1 Port(s) Type-A:

1



Front USB 3.2 Gen 2x2 Port(s) Type-C:

1



Front Headphone Jack(s):

1



Motherboard Support:

Mini ITX / Micro ATX / ATX / E-ATX



Drive Bays Internal 3.5":

1



Drive Bays Internal 2.5":

2



Pre-installed Fan(s) Front:

1 x F120Q



Pre-installed Fan(s) Rear:

1 x F120Q



Radiator Support:

Front: Up to 360mm
Top: Up to 240 mm (280mm with low-profile memory only)



Fan Support:

Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Bottom: 2 x 120mm
Rear: 1 x 120mm



Clearances:

CPU Cooler Height: Up to 170mm
GPU Length: Up to 410mm
PSU Length: Up to 200 mm
Cable Management: Up to 28.7mm
Top Radiator: Up to 240mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator and Fan Combined Thickness:Up to 55mm



Product Width:

225mm



Product Length:

430mm



Product Height:

465mm



Product Weight:

7280Kg



Special Features:

The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support - all in a compact mid-tower form factor.
The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with two 120mm Quiet Airflow fans (CV) - one in front, one in rear - for solid out-of-the-box performance.
Effortlessly route and conceal cables using the wide channels, hooks, and straps.



Package Contents:

H5 Flow Case
2 x F120Q Fans
Installation Accessories
User Guide
