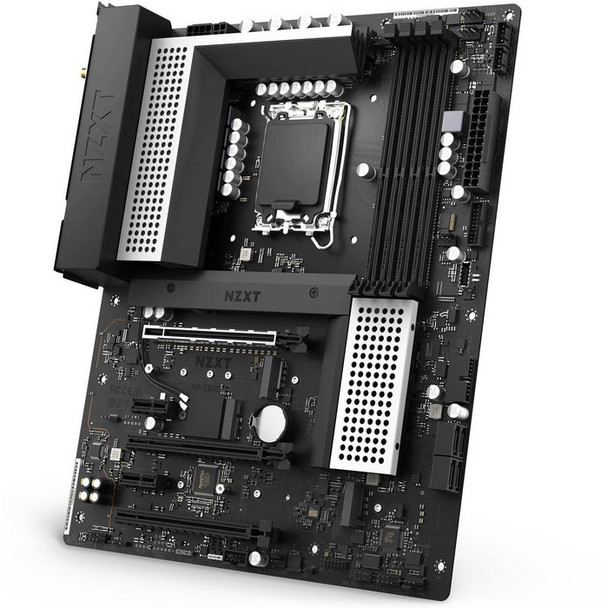

NZXT N5-Z69XT-W1 N5 Z690 Intel Z690 Lga 1700 N5-Z69XT-W1

The N5 is a modern platform for a powerful build, driven by the latest Z690 chipset.

Expansion slots



Number of M.2 (M) slots



2


PCI Express x1 (Gen 3.x) slots



2


PCI Express x16 slots



3


Features



Audio chip



Realtek ALC897


Audio output channels



8 channels


Component for



PC


Motherboard chipset



Intel Z690


Motherboard chipset family



Intel


Motherboard form factor



ATX


Windows operating systems supported



Windows 10 x64, Windows 11 x64


Graphics



Maximum resolution



4096 x 2160 Pixels


Parallel processing technology support



2-Way CrossFireX


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



5


Number of EATX power connectors



1


Number of SATA III connectors



4


Peripheral (Molex) power connectors (4-pin)



1


Power fan connector



Yes


RGB LED pin header



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Logistics data



Harmonized System (HS) code



84733020


Memory



Maximum internal memory



128 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speeds



2133, 2400, 2666, 2800, 2933, 3200


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Bluetooth



Yes


Bluetooth version



5.2


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8125-BG


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)


WLAN controller model



Intel Wi-Fi 6E AX210


Other features



Weight



1.1 kg


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9


Maximum number of SMP processors



1


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Processor special features



Intel� Turbo Boost Technology



3.0


Product dimensions



Net Weight (Product, kg)



1 kg


Product Height



10.1 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.0


Microphone in



Yes


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



1


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


USB connector type



USB Type-A, USB Type-C


WiFi-AP antenna jack



2


Storage controllers



RAID levels



0, 1, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, NVMe, PCI Express 4.0, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


NZXT


Warranty



1 Year(s)
