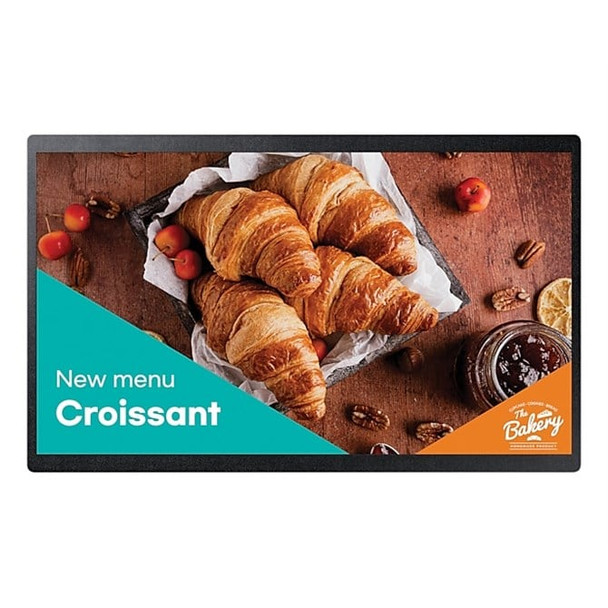

Samsung LH24QBCTBGCXEN Signage Display Digital signage flat panel 60.5 cm 23.8 L LH24QBCTBGCXEN

Expand commercial space with compact display
Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.

Fast, effective touch capabilities
point multi-touch
The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.

Connect with convenience

Home UI
QB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Convenient, clean display control

Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance

IP5X / EMC Class B
QB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.

Change the way to manage your display

Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

Specs




Display


Panel type

ADS


Display diagonal

Size of the display for this product, measured diagonally, usually in inches.

61 cm (24")


Display technology

The technology used in the display e.g. plasma, LED.

LED


Display resolution

The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width - height, with the units in pixels: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
20 x 1080 pixels


Display brightness

Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

250 cd/m-


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

Full HD


Touchscreen

A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.




Touchscreen technology

Capacitive


Multi-touch




Response time

The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
ms


Contrast ratio (typical)

The difference in light intensity between the brightest white and the darkest black.
00:1


Dynamic contrast ratio marketing name

Mega Contrast


Viewing angle, horizontal

Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
8-


Viewing angle, vertical

Maximum vertical angle at which a display can be viewed with acceptable visual performance.
8-


Pixel pitch

This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.

0.2745 x 0.2745 mm


Horizontal scan range

56 - 84.5 kHz


Vertical scan range

48 - 75 Hz


Haze rate

25%


RGB colour space

NTSC


Colour gamut

72%


Ports & interfaces


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

1.4


HDMI input ports quantity

1


DVI port

Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.




USB port

The device features a socket into which a USB cable can be plugged.




USB ports quantity

1


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


RS-232 interface




Infrared data port

A data port that uses infra-red data association (irDA) as the standard for wireless communications between computer and mobile phone devices. For example, to update the phone list on your irDA-enabled PC, you would line up the infra-red ports on each device and then transfer the phone information to your PC. This is a wireless transfer, so you don't need a cable or extra software.




Remote (IR) input

1


Design


Product design

The creation of a plan or convention for the construction of an object or a system.

Digital signage flat panel


Placement supported

Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Indoor


Product colour

The colour e.g. red, blue, green, black, white.

Black


Screen shape

Flat


VESA mounting




Panel mounting interface

The product can be used wih VESA mounting interfaces.
0 x 100 mm



Performance


Purpose

What the product is used for.

Universal


Operating hours (hours/days)
/7


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

2.2


Power


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

38.5 W


Power consumption (sleep)

0.5 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Computer system


Computer system




Computer system type

System on Chip (SoC)


Built-in processor

Whether or not a processor is built into the device.




Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Tizen 7.0


Weight & dimensions


Display width

547.9 mm


Display depth

34.6 mm


Display height

334.4 mm


Display weight

4 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

620 mm


Package depth

The distance from the front to the back of the packaging.
2 mm


Package height

The distance from the top to the bottom of the packaging.

419 mm


Package volume

5200 cm-


Packaging content


Cables included

Power


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 -C


Operating relative humidity (H-H)
- 80%


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Technical details


Audio out (mini jack)

1


Sustainability compliance




Sustainability certificates

EPEAT Bronze


Compliance certificates

CE, China Compulsory Certification (CCC), Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KCC, RoHS, VCCI


Other features


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Flash memory

8000 MB


RS-232 input ports

1


RJ-45 input ports

1
