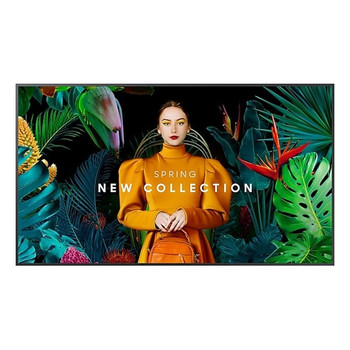

Samsung LH75QBCEBGCXEN Signage Display Digital signage flat panel 190.5 cm 75 Wi LH75QBCEBGCXEN

Slim design. Stunning performance.
Introducing QBC, the slimmest display in the Samsung UHD Signage. It brings elegance to business while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QBC-s efficiency and design innovation.

Maximum impact in minimum space
The QBC's unparalleled ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung-s UHD series. It comes with the Slim Fit Wall Mount, which allows you to install it neatly and easily in any environment. QBC optimizes space with its sleek design that blends seamlessly into your business.

Clean visuals in landscape or portrait mode
Even bezel
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting
Centered VESA Holes
The central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.

Lifelike color, born in a pure state with fine crystal
Dynamic Crystal Color
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.

View lifelike shades of color in powerful 4K
Crystal Processor 4K
Samsung-s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung-s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.

Connect with convenience
Home UI
QBC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Simplified calibration between screens with mobile app
Smart Calibration
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colors required.

Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director-s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards

Change the way to manage your display
Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.

Everyday Sustainability
Energy Star / EPEAT*
Samsung is making diverse efforts to reduce our environmental impact in smart signage, and encouraging users to pursue a more sustainable life.

Specs




Display


Panel type

VA


Display diagonal

Size of the display for this product, measured diagonally, usually in inches.
0.5 cm (75")


Display technology

The technology used in the display e.g. plasma, LED.

LCD


Display resolution

The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width - height, with the units in pixels: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

3840 x 2160 pixels


Display brightness

Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

350 cd/m-


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD


Touchscreen

A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.




Response time

The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

8 ms


Contrast ratio (typical)

The difference in light intensity between the brightest white and the darkest black.

4000:1


Dynamic contrast ratio marketing name

Mega Contrast


Viewing angle, horizontal

Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
8-


Viewing angle, vertical

Maximum vertical angle at which a display can be viewed with acceptable visual performance.
8-


Pixel pitch

This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.

0.429 x 0.429 mm


Horizontal scan range

30 - 81 kHz


Vertical scan range

48 - 75 Hz


Haze rate

2%


Pixel frequency (max)

594 MHz


RGB colour space

NTSC


Ports & interfaces


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

3


HDMI version

2.0


HDMI input ports quantity

3


DVI port

Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.




USB port

The device features a socket into which a USB cable can be plugged.




USB ports quantity

2


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


RS-232 interface




Infrared data port

A data port that uses infra-red data association (irDA) as the standard for wireless communications between computer and mobile phone devices. For example, to update the phone list on your irDA-enabled PC, you would line up the infra-red ports on each device and then transfer the phone information to your PC. This is a wireless transfer, so you don't need a cable or extra software.




Remote (IR) input

1


Design


Product design

The creation of a plan or convention for the construction of an object or a system.

Digital signage flat panel


Placement supported

Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Indoor


Product colour

The colour e.g. red, blue, green, black, white.

Black


Screen shape

Flat


VESA mounting




Panel mounting interface

The product can be used wih VESA mounting interfaces.

400 x 400 mm


Bezel width (bottom)

1.34 cm


Bezel width (side)

1.34 cm


Bezel width (top)

1.34 cm


Bezel colour

Charcoal Black



Design


Mounting type

Type of mounting e.g. wall mounting.

Wall


Performance


Purpose

What the product is used for.

Universal


Operating hours (hours/days)
/7


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

2.2


Power


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

214.5 W


Power consumption (sleep)

0.5 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0-240 V


AC input frequency

50-60 Hz


Energy efficiency scale

A to G


Computer system


Computer system




Computer system type

System on Chip (SoC)


Built-in processor

Whether or not a processor is built into the device.




Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Tizen


Operating system version

The version of the operating system used e.g. 4.1, 4.2 for Android.

7.0


Weight & dimensions


Display width
82.3 mm


Display depth

28.5 mm


Display height

960.4 mm


Display weight

33.4 kg


Packaging data


Package width

The distance from one side of the packaging to the other.
39 mm


Package depth

The distance from the front to the back of the packaging.
0 mm


Package height

The distance from the top to the bottom of the packaging.
13 mm


Package weight

Weight of the packaged product.

41.5 kg


Packaging content


Stand included




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 -C


Operating relative humidity (H-H)
- 80%


Certificates


Certification

Class B Class B60950-1, 62368-1


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Technical details


Audio out (mini jack)

1


Other features


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Flash memory

8000 MB


RS-232 input ports

1


RS-232 output ports

1


RJ-45 input ports

1


Optional features

WMN-B50SC STN-L6585C
