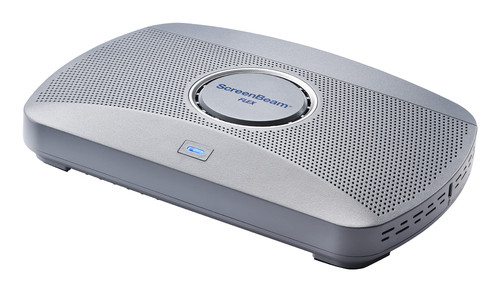

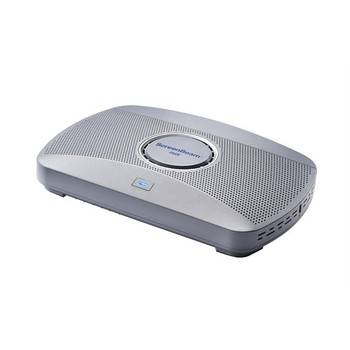

Screenbeam Flex. form Factor: Desktop Product Colour: White Certification: Fcc R SBWD1100FEUINL

ScreenBeam Flex. Form factor: Desktop, Product colour: White, Certification: FCC, RED, RoHS, UL. Wi-Fi standards: Wi-Fi 5 (802.11ac), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Ethernet LAN data rates: 10,100,1000 Mbit/s. Interface: HDMI + USB Type-A. Power source type: DC, Input voltage: 12 DC, Input current: 3 A. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Other operating system SMB and Higher Education institutions can affordably transform any space into a dynamic collaboration hub with the ScreenBeam FLEX. The FLEX is a high-performance wireless presentation platform with features set for immediate needs, and upgradeable to advanced capabilities as needed. The ScreenBeam FLEX delivers all the critical capabilities for engaging classrooms and meeting spaces including device agnostic wireless presentation, a built-in HTML 5.0 digital signage player, interactive flat panel support for wireless inking and annotation, and easy access for employees and guests without compromising network security. ScreenBeam FLEX untethers presenters and teachers from the room display, while also providing the tools and flexibility to engage with everyone in the room in new and dynamic ways --- even in hybrid situations. Flex ensures a rapid return on investment without compromising your future needs. Easily connect personal devices to the room display. ScreenBeam Flex enables native wireless presentation from any operating system without special software or drivers. Support for industry standards Miracast, AirPlay and Google Cast ensures intuitive high-performing wireless presentation. Miracast Miracast peer-to-peer connectivity allows users to share content wirelessly, use extended display, and take full advantage of Microsoft 365 features, including touch screen support and inking. AirPlay Supports AirPlay native in macOS and iOS devices by simply connecting your device to same network as the ScreenBeam receiver or local Wi-Fi. Google Cast Wirelessly present content over the network with the Google Cast function on all Android devices, and Chromebook/ChromeOS devices. Advanced features are available ScreenBeam FLEX is designed to customize to your current needs with an upgrade path to advanced capabilities needed Video conference support with wireless connectivity to room peripherals. Room calendaring for smooth scheduling. Multi-Beam allowing content mirroring to additional ScreenBeam receivers.
Packaging content

Cables includedHDMI

Design

CertificationFCC, RED, RoHS, UL
Form factorDesktop
Product colourWhite

Features

MiracastYes
AirPlay mirroringYes
Google CastYes

Operational conditions

Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)20 - 85 ??C
Operating temperature (T-T)0 - 40 ??C
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight453.5 g
Height37.5 mm
Width220 mm
Depth144 mm

Ports & interfaces

InterfaceHDMI + USB Type-A
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Number of HDMI outputs1
3.5 mm (1/8-inch) outYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1


Power

Power consumption (typical)8.4 W
Input voltage12 DC
Input current3 A
Power source typeDC
Power consumption (max)24.8 W

System requirements

Mac compatibilityYes
Windows operating systems supportedWindows 10, Windows 11
Mac operating systems supportedMac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS
Mobile operating systems supportedAndroid 8.0, Android 8.1, Android 9.0, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16

Network

Wi-Fi standardsWi-Fi 5 (802.11ac)
Supported network protocolsIEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS
Cabling technology10/100/1000Base-T(X)
Ethernet LANYes
Networking standardsIEEE 802.1x
BluetoothYes
Ethernet LAN data rates10,100,1000 Mbit/s
Dual-bandYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
