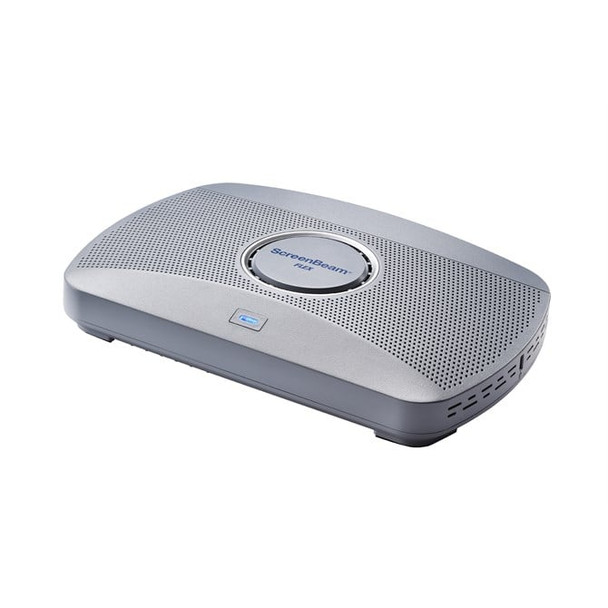

ScreenBeam Flex Wireless Presentation System HDMI + USB Type-A Desktop SBWD1100FEUINL

ScreenBeam FLEX delivers 4K wireless presentation, multi-user display, touch/inking support, and digital signage-empowering SMBs and higher ed to affordably turn any space into a secure, dynamic collaboration hub.

App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.

Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.

Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.

Multi-Network architecture
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously, without compromising the security of your internal network.

Multi-View
Up to four presenters in-room can share content simultaneously during a meeting making it easier for real-time editing of materials.

Quick Switch
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.

Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.

HDMI Input
Combines wireless display and HDMI- switching in a single device for a fully functional for wired and wireless connections.

Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.

Specs




Design


Form factor

The shape or design of the product.

Desktop


Product colour

The colour e.g. red, blue, green, black, white.

White


Certification

FCC, RED, RoHS, UL


Features


AirPlay mirroring




Miracast




Google Cast




Network


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 5 (802.11ac)


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 5 (802.11ac)


Dual-band

A dual band device can work with two different bands. Dual-band WiFi (wireless) contains two different types of wireless radios that can support connections on both 2.4 GHz and 5 GHz links.




Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1x


Supported network protocols

Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS


Ports & interfaces


Interface

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

HDMI + USB Type-A


Number of HDMI outputs

Port (socket) for HDMI output.

1


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1


3.5 mm (1/8-inch) out




DC-in jack

The socket/plug where the DC electricity supply connects to the device.





Power


Power source type

What the power source is.

DC


Input voltage

The voltage (V) which is required to power the product.
DC


Input current

3 A


Power consumption (max)

The maximum amount of power used by the device.

24.8 W


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

8.4 W


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 11


Mac compatibility

Product can be used with Apple Mac software and/or hardware.




Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Other operating systems supported

ChromeOS


Mobile operating systems supported

The operating systems e.g. Android, iOS, that can be used with the mobile device.

Android 8.0, Android 8.1, Android 9.0, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 -C


Operating relative humidity (H-H)
- 80%


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.
- 85 -C


Storage relative humidity (H-H)
- 90%


Weight & dimensions


Width

The measurement or extent of something from side to side.

220 mm


Depth

The distance from the front to the back of something.
4 mm


Height

The measurement of the product from head to foot or from base to top.

37.5 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

453.5 g


Packaging content


Cables included

HDMI
