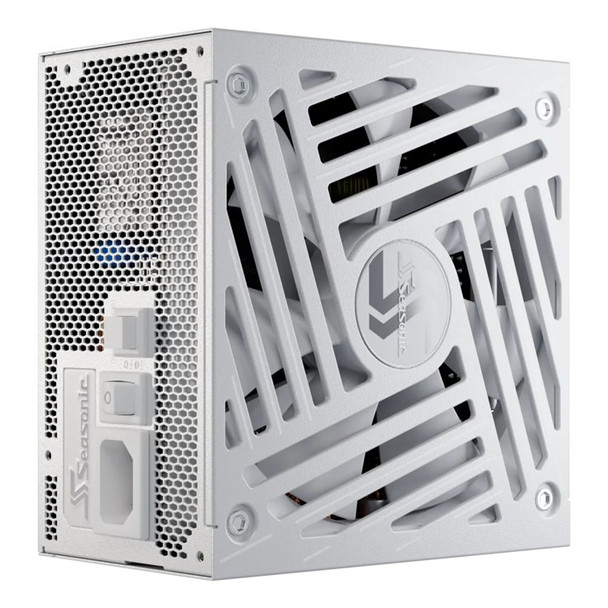

Seasonic Focus GX-1000 power supply unit 1000 W 20+4 pin ATX ATX White FOCUS-GX-1000-V4-WHITE

FOCUS GX ATX 3.0 Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market. Digital Hybrid Fan Control The industry-s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode. Reduced noise without increase in temperature Extended fan life due to the reduced number of fan rotations Optimized heat dissipation at all times Unsurpassed silent performance in Fanless Mode Fluid Dynamic Fan Bearing High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Power Total power The total power that is needed by the device, or the total power produced by the device. 1000 W AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V AC input frequency 50/60 Hz Input current 13 - 6.5 A Maximum input current (@110V) 13 A Maximum input current (@220V) 6.5 A Combined power (+3.3V) 125 W Combined power (+12V) 996 W Combined power (+5V) 125 W Combined power (-12V) 3.6 W Combined power (+5Vsb) 15 W Max output current (+3.3V) 25 A Max output current (+12V) 83 A Max output current (+5V) 25 A Max output current (-12V) 0.3 A Max output current (+5Vsb) 3 A Power protection features Features that protect the device against power problems e.g. overload. Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector The way in which the motherboard is connected to the power supply. 20+4 pin ATX Motherboard power cable length 61 cm Number of SATA power connectors 2 SATA power cable length 550 mm Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. 3 Peripheral (Molex) power cable length 690 mm PCI Express power connectors (6+2 pin) 3 PCI Express power connectors (12+4 pin) 1
