Seasonic SSR-750FA Power Supply Unit 750 W 20+4 SSR-750FA

The development of the Seasonic CONNECT is the result of continued interest from our users and partners during the past few years. While fully modular power supplies helped to alleviate the need to plug in cables that were not necessary for some builds, our engineers have continuously been searching for a better and cleaner way of power supply cable management. Eventually, they came up with another possibility to improve the overall functionality and look of PC systems. This is how the SCMD, introduced at Computex 2018, was born, which ultimately has further evolved to become the upcoming Seasonic CONNECT.

The exact time to market depends on your location. Please contact your local Seasonic Representative to obtain more information.

80 PLUS� GOLD
The PRIME Gold Series achieves 80 PLUS� Gold certification with its 90 % efficiency at 50 % system load.

INTRODUCING SEASONIC CONNECT

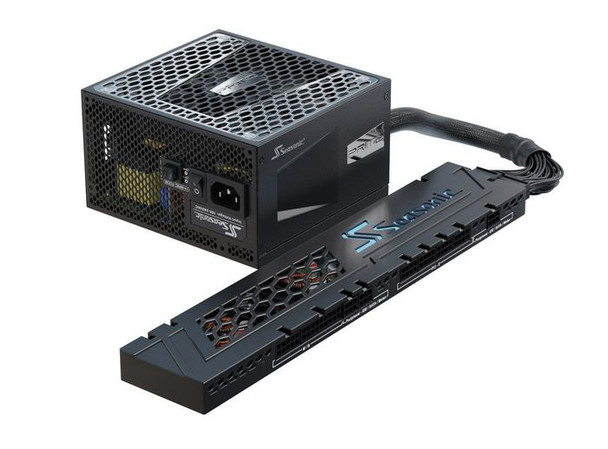

The Seasonic CONNECT is comprised of two linked products. One is the Seasonic PRIME 750 W 80 PLUS� Gold certified power supply, with our S3FC technology for efficient cooling and quiet operation. The other component is the CONNECT device, which is essentially a backplane that is mounted on the PC case with magnets to provide for the connections to all the components. During installation we only need to use two cables from the power supply to power the CONNECT. While the power supply itself supports the +12 V, -12 V and +5 Vsb rails, the CONNECT converts this power to provide the +3.3 V and +5 V outputs from the +12 V rail.

ONE CLEAN SOLUTION
The Seasonic CONNECT is an aesthetic upgrade to everyone�s system and it will also feature a Seasonic LED display. The Seasonic CONNECT will ship with a dedicated cable set that will be long enough to reach any part of your computer to make your CONNECT, a One Clean Solution.

Design



Cooling type



Active


On/off switch



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating relative humidity (H-H)



15 - 65 %


Operating temperature (T-T)



0 - 50 �C


Other features



Number of screws



4


Screws included



Yes


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging content



Cables included



CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA


Packaging data



Manual



Yes


Performance



80 PLUS certification



80 PLUS Gold


Bearing technology



FDB


Certification



cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH


Mean time between failures (MTBF)



150000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Supported motherboard form factors



ATX


Ports & interfaces



Cabling type



Modular


CPU power cable length



23 cm


CPU power connectors (8-pin)



2


Motherboard power cable length



20 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



3


PCI Express power cable length



28 cm


PCI Express power connectors (8-pin)



4


Peripheral (Molex) power cable length



690


Peripheral (Molex) power connectors (4-pin)



1


SATA power cable length



230, 210, 470


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



744 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Input current



5 - 10 A


Max output current (+12V)



62 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power protection features



Over current, Over power, Over voltage, Short circuit, Under voltage


Total power



750 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Sustainability certificates



RoHS, ENERGY STAR


Vendor information



Brand Name


Seasonic


Warranty



1 Year(s)
