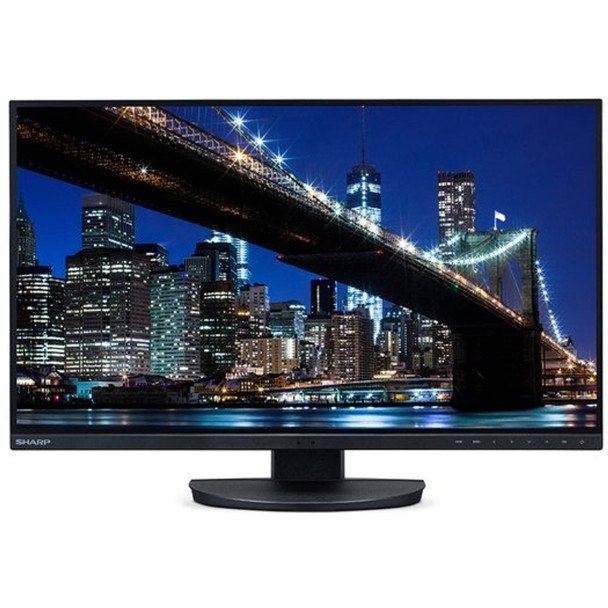

Sharp MultiSync EA272U Digital signage flat panel 68.6 cm 27" LCD 3840 x 2160 pi 60006064

Sharp MultiSync EA272U - maximum screen estate, minimum cable clutter

For detail-rich applications, the high pixel density UltraHD resolution coupled with 27-inch active screen area results in an expansive digital canvas for the most productive personal workspaces. Extend your visual command even further with a near uninterrupted multi-screen configuration with ultra-narrow bezel and DisplayPort OUT daisy-chain.

Featuring powerful 90W USB Type-C connectivity and embedded LAN, the EA272U becomes a fully functioning Docking Hub solution. With just a single cable to connect notebook/PC to the display whilst powering your device, workspace remains clear of cable clutter and e-waste is minimised. The display's sustainable functionality continues, achieving energy savings of up to 30% by enabling sensor technology to automatically reduce brightness or power down as appropriate to usage scenarios.

Prioritising user wellbeing, the 150mm height adjustable stand and ergonomic features are easily adjusted to suit individual user requirements whilst low-blue light and flicker-free technologies ensure eye-pleasing comfort and protection.

Features


Improve your productivity - enhance your personal workspace with embedded LAN, whereby the display becomes a Docking Hub, eliminating the need for additional hardware and reducing eWaste


Frictionless workflows - with USB-C connectivity only a single cable is needed to connect your notebook to the display receiving power in return, ideal for hot desking and BYOD scenarios


Energy efficiency - reduce your energy consumption by up to 30% by enabling the built-in Human and Ambient Light Sensors ensuring the display is only powered up according to usage conditions


Ergonomic comfort - with full 150 mm height adjustability the user can easily adjust the display to achieve the best possible individual set up


Detail rich visualisation - at 3840 x 2160 pixels, the Ultra HD resolution displays content in crisp detail offering 4 times the pixel density of Full HD



Design


VESA mounting

Yes


Bezel width (side)

1 mm


Bezel width (top)

1 mm


Placement supported

Indoor


Bezel width (bottom)

1 mm


Bezel colour

Black


Product colour

Black


Panel mounting interface
0 x 100 mm


Product design

Digital signage flat panel


Stand type

Center stand


Orientation

Horizontal/Vertical


Screen shape

Flat



Weight & dimensions


Display depth

250 mm


Display weight

5.8 kg


Weight (with stand)

9.2 kg


Display width

611.8 mm


Display height

528 mm



Packaging content


Cables included

AC


Stand colour

Black


Mounting kit

Yes


Tilt adjustment

Yes


Stand included

Yes


Power adapter included

Yes



Technical details


Warranty period

3 year(s)


Compliance certificates

CE, EAC, RoHS, UL, cUL



Certificates


Certification

CE; EAC; EnergyStar 8.0; ErP; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 9.0; TCO Edge 2; TV Ergonomics; TV GS; UL/C-UL or CSA



Features


Suitable for indoor use

Yes


Base colour

Black



Operational conditions


Operating temperature (T-T)

5 - 35 C


Operating relative humidity (H-H)
- 80


Storage relative humidity (H-H)
- 85


Storage temperature (T-T)

-10 - 60 C



Ports & interfaces


HDMI ports quantity

1


USB ports quantity

1


USB connector type

USB Type-C


USB version

3.2 Gen 1 (3.1 Gen 1)


Wi-Fi

No


Ethernet LAN

Yes


DisplayPorts in

1


DisplayPorts quantity

2


DisplayPorts out

1


Ethernet LAN (RJ-45) ports

1


DVI port

No


USB port

Yes



Audio


Built-in speaker(s)

Yes


RMS rated power

2 W



Performance


Ambient light sensor

Yes


Purpose

Universal



Power


AC input voltage
0 - 240 V


Power consumption (typical)

31 W


Energy efficiency class (SDR)

C


Energy efficiency scale

A to G


Energy consumption (SDR) per 1000 hours
kWh



Display


Touchscreen

No


Viewing angle, vertical
8


LED backlight

Yes


Horizontal scan range

31.5 - 135 kHz


Native aspect ratio
:9


Contrast ratio (dynamic)
000:1


Panel type

IPS


Display diagonal

68.6 cm (27")


Display number of colours

1.06 billion colours


Contrast ratio (typical)
00:1


Response time

5 ms


Display diagonal (metric)

68 cm


Number of displays

1


Display technology

LCD


Vertical scan range

30 - 75 Hz


Viewing angle, horizontal
8


Display resolution

3840 x 2160 pixels


RGB colour space

sRGB


Display brightness

400 cd/m
