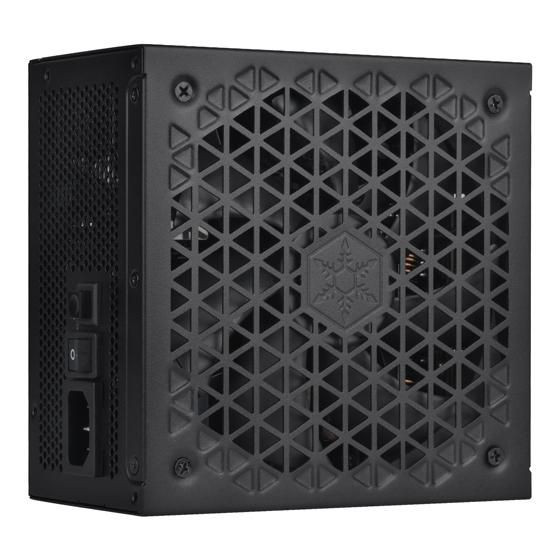

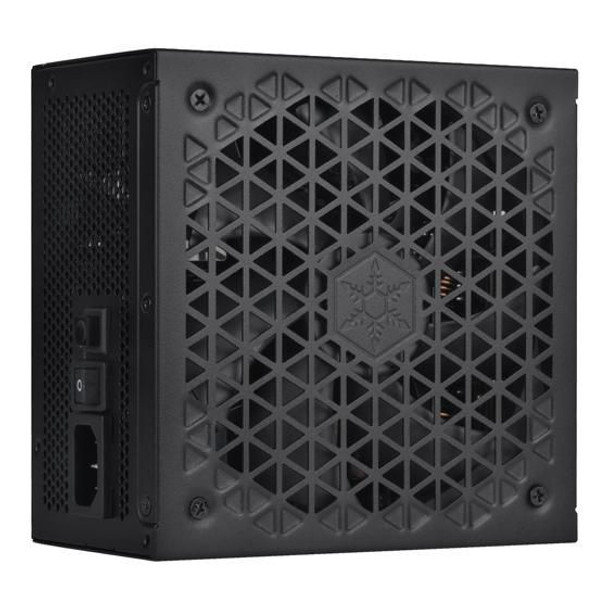

Silverstone SST-DA1000R-GM Da1000R Gold Power Supply SST-DA1000R-GM
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- SST-DA1000R-GM
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
12VHPWR PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems
Cybenetics Gold Certified
Designed for Cybenetics Gold level of efficiency to reduce wasted heat and save on electricity
All Japanese electrolytic capacitors
Ensure reliable power and extended life span
Silent 135mm FDB fan
Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office us
Design
Cooling type
Active
Fan diameter
13.5 cm
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Performance
80 PLUS certification
80 PLUS Gold
ATX version
3.0
Bearing technology
FDB
Mean time between failures (MTBF)
100000 Hour
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
Cabling type
Modular
CPU P4 connector (4-pin)
2
EPS power connector (4+4 pin)
Yes
Floppy disk drive cable length
10 cm
Floppy disk drive connector
Yes
Floppy drive power connector
1
Motherboard power cable length
60 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
12
PCI Express power connectors (8-pin)
6
Peripheral (Molex) power connectors (4-pin)
3
Power
AC input frequency
47 - 63 Hz
AC input voltage
90 - 264 V
Combined power (+12V)
1000 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Efficiency
88 %
Max output current (-12V)
0.3 A
Max output current (+12V)
83.5 A
Max output current (+3.3V)
22 A
Max output current (+5V)
22 A
Max output current (+5Vsb)
3 A
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power
1000 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
15 cm
Product Height
8.6 cm
Product Width
15 cm
Vendor information
Brand Name
Silverstone
Warranty
1 Year(s)
