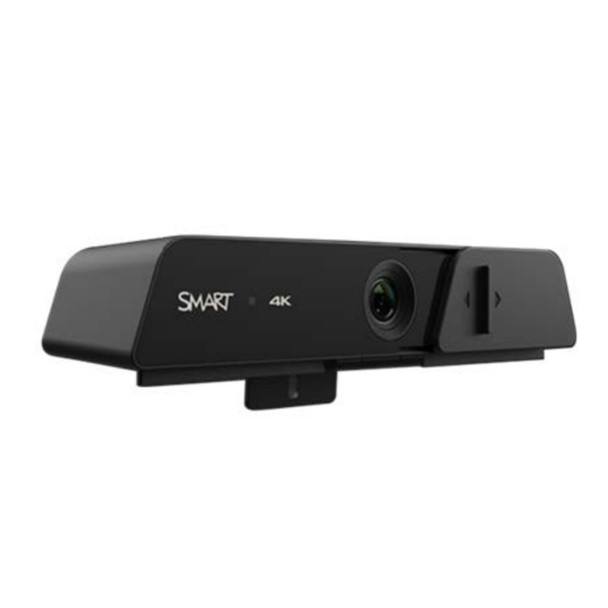

SMART Technologies SWC-120UHD 8.28 MP CMOS 3840 x 2160 pixels 30 fps 138 10x SWC-120UHD

The SMART Ultra HD Camera 120 is a 4K Ultra-HD camera with ePTZ. Easily install the camera on a SMART Board interactive display. The camera can automatically frame people meeting in a boardroom.

Design


Product colour

Black



Weight & dimensions


Height

38 mm


Width
5 mm


Depth

44 mm


Weight

230 g



Logistics data


Quantity per pack

1 pc(s)



Video


Maximum video resolution

3840 x 2160 pixels


Maximum frame rate

30 fps



Certificates


Compliance certificates

REACH, RoHS, UKCA, WEEE



Camera


Field of view (FOV) angle
8


Sensor type

CMOS


Zoom capability

Yes


F-number (relative aperture)

2


Signal-to-Noise Ratio (SNR)

50 dB


Megapixel (approx?)

8.28 MP


White balance

Auto, Manual


Focal length range

1.89 mm


Optical sensor size

25.4 / 2.8 mm (1 / 2.8")


Auto exposure

Yes


Camera type

Single camera


Horizontal field of view
0


Vertical field of view

68


Digital zoom
x



Operational conditions


Operating temperature (T-T)

-10 - 50 C


Operating relative humidity (H-H)
- 80


Storage relative humidity (H-H)
- 90


Storage temperature (T-T)

-10 - 60 C



Performance


Auto framing

Yes



System requirements


Windows operating systems supported

Windows 10


Minimum processor family

Core 2 Duo


Minimum processor speed

2.4 GHz


Mac operating systems supported

Mac OS X 10.10 Yosemite


Linux operating systems supported

Yes


Mobile operating systems supported

Android 11.0



Power


Operating current

0.9 A


Operating voltage

5 V



Packaging data


Package height

95 mm


Package depth
0 mm


Package width

260 mm


Package weight

550 g
