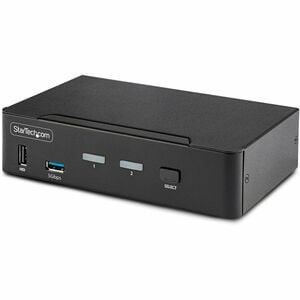

Startech 2-Port Displayport 1.4 Kvm Switch 8K 60Hz / 4K 144Hz 2X Usb 3.0 Ports 4 D86A2-2-PORT-8K-KVM

StarTech.com 2-Port DisplayPort 1.4 KVM Switch, 8K 60Hz / 4K 144Hz, 2x USB 3.0 Ports, 4x USB 2.0 Ports, Hotkey Switching, TAA Compliant - 2-Port KVM enables fast switching between USB-A/DisplayPort-enabled desktops sharing keyboard/mouse and an 8K 60Hz monitor; DSC support required for maximum performance; Universal KVM is OS independent; Push-button or hotkey switching; Metal housing Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices. High-Resolution 8K 60Hz Video This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity. Customizable Switching This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host. Universal Compatibility The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD. Reliable Performance The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.
Environmental Conditions

Maximum Operating Temperature40??C

Power Description

Input Voltage Range100 - 240 AC
Power Plug TypeType M

Video

Maximum Video Resolution7680 x 4320
Graphic Mode8K

Miscellaneous

Package Contents2-Port USB 3.2 Gen 1 KVM Switch - DisplayPort - 8K 60Hz
1 x Quick-Start Guide
1 x Universal Power Adapter (NA/JP, EU, UK, NZ)
4 x Rubber Feet

Environmentally FriendlyYes
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)

Interfaces/Ports

USBYes
Number of USB Ports8
DisplayPortYes
USB StandardUSB 3.2
Number of DisplayPorts3
USB 2.0Yes


Physical Characteristics

Weight (Approximate)589.7 g
Height40.6 mm
Width99.1 mm
Depth160 mm

Technical Information

FeaturesLED Indicator
Maximum Data Transfer Rate640 MB/s
Number of Computers Supported2
Number of Local Users Supported1

General Information

Product TypeKVM Switchbox
Manufacturer Part NumberD86A22PORT8KKVM
Manufacturer Website Addresshttp://www.startech.com/uk
Packaged Quantity1
ManufacturerStarTech.com
Product Name2-Port USB 3.2 Gen 1 KVM Switch - DisplayPort - 8K 60Hz
Brand NameStarTech.com
