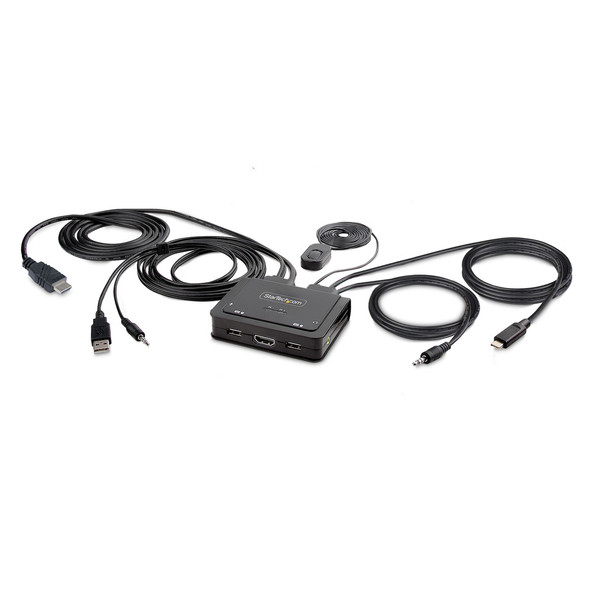

Startech 2-Port Hybrid USB-C HDMI Cable KVM Switch 4K 60Hz Compact KVM with 6ft/ C2-H46-UAC-CBL-KVM

Share a mouse, keyboard, and a 4K 60Hz HDMI display between a USB-A computer and a USB-C HDMI Alt-mode computer, using this KVM Switch with built-in cablesThis Hybrid KVM Switch enables users to switch between a USB Type-A and HDMI-enabled desktop and a USB Type-C (DP Alt-Mode) enabled laptop, to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz HDMI monitor.Hassle-Free SetupThe KVM switch is bus powered and features built-in HDMI, USB-A, USB-C, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.CompatibilityThe 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5mm port the included 3.5mm Headset Adapter ensures compatibility out of the box.Intuitive ControlThe KVM switch offers two options to switch between hosts - a remote push button or hotkey commands. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, ensuring uninterrupted audio when switching between host devices.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:� Advanced Windows Layout Utility: Setup and save custom windows layouts.� MAC Address Pass-Through Utility: Improve network security.� USB Event Monitoring Utility: Track and log connected USB devices.� Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThe StarTech.com Advantage

Features


4K 60HZ HYBRID KVM SWITCH: Enables switching between a USB-A/HDMI desktop and a USB Type-C DP-Alt Mode enabled laptop to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz HDMI monitor


READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features built-in 6ft/1.8m USB-A, HDMI, and Audio host cables for PC1, & 4ft/1.2m USB-C and Audio host cables for PC2


COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook/Mac Mini); Works with USB-C, USB4, Thunderbolt 3/4


SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other


OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts



Other features


IP control

No



Ports & interfaces


Console HDMI ports quantity

1


USB connector type

USB Type-A, USB Type-C


Audio connections

Yes


Keyboard port type

USB


Headphone outputs

1


Console ports

3.5mm headphone, 3.5mm mic, HDMI, USB A


HDMI ports quantity

1


Number of computers controlled

2


Number of microphone inputs

1


Mouse port type

USB


Video port type

HDMI


HDMI version

2.0b


Console USB ports quantity

2



System requirements


Other operating systems supported

ChromeOS


Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey



Design


Push button

Yes


Mean time between failures (MTBF)

345059 h


Product colour

Black


Cable length

1.8 m


Hot keys

Yes


Rack mounting

No


Housing material

Acrylonitrile butadiene styrene (ABS)


LED indicators

Yes



Weight & dimensions


Height

24 mm


Width

92 mm


Depth

97 mm


Weight

265 g



Packaging content


Quick installation guide

Yes



Logistics data


Master (outer) case width

440 mm


Master (outer) case height

345 mm


Products per master (outer) case

20 pc(s)


Master (outer) case length

345 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

RoHS



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 90


Storage temperature (T-T)

-20 - 60 �C



Performance


Video bandwidth

60 Hz


Maximum resolution

4096 x 2160 pixels


Audio channels

2.0


Scan interval

10,20,30,40,50,60 s


Data transfer rate (max)

0.48 Gbit/s


HD type

4K Ultra HD


Number of displays supported

1



Power


Power source

USB



Display


Built-in display

No


On Screen Display (OSD)

No



Packaging data


Package height

60 mm


Package depth

160 mm


Package width

210 mm


Package weight

500 g
