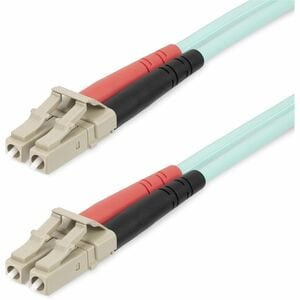

Startech 20M 65Ft Lc/Upc To Lc/Upc Om4 Multimode Fiber Optic Cable 50/125?�m 100 450FBLCLC20

StarTech.com 20m (65ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125?-m, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord - 20m (65ft) OM4 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125?-m Core w/ Aramid Sheath; Bandwidth: 2000MHz---km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60??C (-4 to 140??F) The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks. Engineered for Optimal Performance With laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance. Wide Compatibility This multimode 50/125?-m fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments. Flame Resistant Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration. Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Physical Characteristics

Product ColorAqua
Color FamilyGreen

Technical Information

Cable Length20 m
Data Transfer Rate100 Gbit/s
Device SupportedNetwork Device
Jacket TypeLSZH
FeaturesFlame Retardant
Molded
Strain Relief
UPC Polished Connector
Zip Cord
Bend Resistant
Cable CharacteristicPatch Cable
Cable TypeFibre Optic
Connector Type on First EndLC/UPC Network - Male
Connector Type on Second EndLC/UPC Network - Male
Fiber Optic ModeMulti-mode
Fiber TypeDuplex
Connector on First End Details2 x LC/UPC Network - Male
Connector on Second End Details2 x LC/UPC Network - Male
Connector Gender on First EndMale
Connector Gender on Second EndMale
Fiber CategoryOM4
Fiber Optic Cable Core/Cladding Specification50/125 ?-m


General Information

Product TypeNetwork Cable
Manufacturer Part Number450FBLCLC20
Manufacturer Website Addresshttp://www.startech.com/uk
Packaged Quantity1
ManufacturerStarTech.com
Product NameFiber Optic Duplex Patch Network Cable
Brand NameStarTech.com

Miscellaneous

Environmentally FriendlyYes
REACH Declaration URLhttps://media.startech.com/cms/pdfs/450fblclc20_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/450fblclc20_rohs.pdf
End of Life Manual AvailabilityYes
REACH free of SVHCYes
WEEE Statementhttps://media.startech.com/cms/pdfs/450fblclc20_weee.pdf
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
