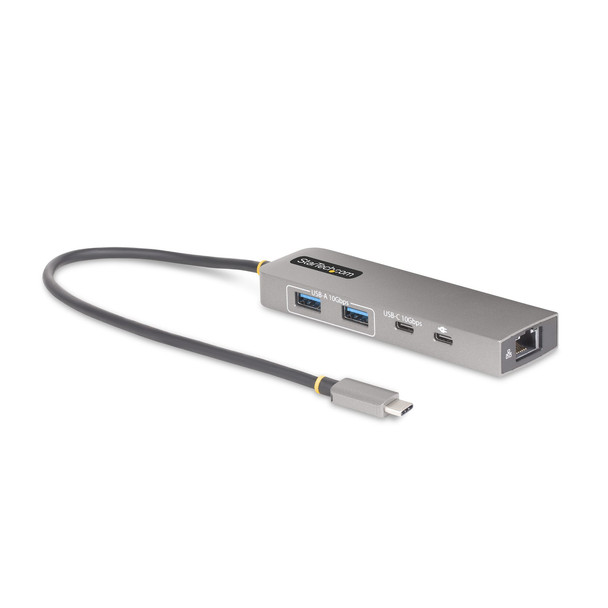

Startech 3-Port USB-C Hub with 2.5 Gbps Ethernet and 100W Power Delivery Pass-Th 10G2A1C25EPD-USB-HUB

Enable 2.5G ethernet, 100W PD pass-through, and add three USB 3.2 10Gbps ports, using this portable adapterThis USB Type-C Hub with 2.5Gigabit Ethernet and 100W USB Power Delivery Pass-Through adds three USB 3.2 Gen 2 (10Gbps) ports (2x USB-A, 1x USB-C) to a USB-C enabled computer. Connect the USB hub to a USB-C port on a laptop, using the built-in 1ft (30cm) USB-C host cable. Charge a host laptop by connecting the host laptop's USB-C power supply to the USB Power Delivery (PD) 3.0 port. Backward compatibility with USB 2.0 (480Mbps) devices ensures support for a wide range of modern and legacy USB peripherals.2.5 Gigabit EthernetThe USB hub features a 2.5 Gigabit Ethernet adapter. The Ethernet controller is compatible with the IEEE 802.3bz standard (2.5GBASE-T/NBASE-T) and supports Wake-on-LAN (WoL), Jumbo Frames, and V-LAN Tagging. The network adapter enhances network reliability, security, and performance at speeds of up to 10/100/1000/2500Mbps.USB Power Delivery Pass-ThroughThis USB hub features 100W USB Power Delivery 3.0 pass-through (85W laptop charging). Connect a power source to the PD pass-through port to power the connected host device. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when switching power sources (USB-C power adapter to bus power).This Power is dynamically shared across the downstream ports. For added protection to the USB hub and any connected devices, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.Plug and PlayThis device is compatible with all major operating systems, including Windows, macOS, ChromeOS, iPadOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:�USB Event Monitoring Utility: Track and log connected USB devices.�MAC Address Pass-Through Utility: Improve network security.�Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-toolsThe StarTech.com Advantage

Features


3-PORT USB-C HUB: Expand the connectivity of a USB-C computer by adding three USB 3.2 Gen 2 10Gbps Ports (2x USB-A, 1x USB-C), plus a USB-C Power Delivery Port; 2.5 Gigabit Ethernet RJ45 for wired LAN connectivity (Wake-on-LAN); Easy Driverless setup


2.5GBASE-T ETHERNET: Features a 2.5Gb network controller that delivers speeds of 10/100/1000/2500Mbps; Link/Activity status LEDs; Ideal for high-demand applications in data centers, server farms, and other high-performance computing environments


RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter; 100W Power Delivery 3.0 pass through with 15W reserved for the USB Hub to avoid device dropouts or overdrawing power that is common in other hubs, and up to 85W for laptop charging


EXTRA-LONG CABLE: Attached 1ft/30cm cable with TPE jacket provides long reach for easy setup and prevents adapter from dangling on the host connector; Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands


OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams; USB Event Monitoring logs/timestamps USB port usage enabling admins to identify potentially malicious devices, MAC Address Cloning & WIFI Auto Switch Utilities



Weight & dimensions


Height

15 mm


Width

163 mm


Depth

34 mm


Weight

68 g



Packaging content


Quick start guide

Yes



Logistics data


Master (outer) case width

500 mm


Master (outer) case height

210 mm


Products per master (outer) case

60 pc(s)


Master (outer) case length

320 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Network


Wake-on-LAN ready

Yes


Networking standards

IEEE 802.3bz


Ethernet LAN

Yes


Ethernet LAN (RJ-45) ports

1


Ethernet LAN data rates

10,100,1000,2500 Mbit/s



Other features


Chipset

VIA - VL103, VIA - VL822, Realtek - RTL8156B



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

10 - 85


Storage temperature (T-T)

-10 - 70 �C



Ports & interfaces


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


USB Power Delivery

Yes


USB Power Delivery revision

3.0


Microphone in

No


Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C


USB 3?2 Gen 1 (3?1 Gen 1) Type-C ports quantity

1


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

2


USB Power Delivery up to

100 W


Connectivity technology

Wired



Performance


Data transfer rate

10 Gbit/s


Product colour

Grey


Card reader integrated

No


Housing material

Plastic


LED indicators

Activity, Link



Power


USB cable length

0.305 m


Power source type

USB



Packaging data


Package height

30 mm


Package depth

142 mm


Package width

170 mm


Package weight

129 g
