Startech 3Ft 1M Vesa Certified Mini Displayport To Displayport 1.4 Cable 8K 60Hz DP14MDPMM1MB

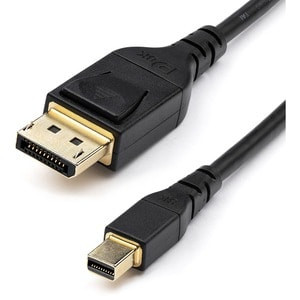

StarTech 3ft 1m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Slim Cord - 3.3ft VESA Certified mini DP to DisplayPort 1.4 cable | 8K 60Hz (7680x4320) or 4K 120Hz w/DSC 1.2 | HDR HBR3 HDCP 2.2 | 32ch audio - Strain relief absorbs bend stress | Slim 34 AWG cable - Works w/ mDP 1.2/Thunderbolt 2 hosts - Nvidia/AMD video cards This 1 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection. Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports:Multi-Stream Transport (MST) for daisy chaining multiple monitors. Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio. HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards. Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate. Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays. Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as:Radeon?�� VII, SSG, WX x100, Pro and FirePro?�� series. Nvidia Quadro P series. Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications. Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection. The DP14MDPMM1MB is backed by a StarTech lifetime warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Physical Characteristics

Shipping Height20.07 mm
Shipping Width219.96 mm
Jacket MaterialPolyvinyl Chloride (PVC)
Product ColorBlack
Color FamilyBlack

Technical Information

Cable Length1 m
Data Transfer Rate32.4 Gbit/s
Device SupportedTV
Projector
Audio/Video Device
PC
Computer
Notebook
Workstation
MAC
Monitor
Graphics Card
ShieldingYes
FeaturesBend Resistant
Display Stream Compression (DSC) 1.2
Forward Error Correction (FEC) Support
HDCP 2.2
Latching Connector
Multi-Stream Transport (MST) Support
DPCP
EMI Protection
Strain Relief
Tarnish Resistant
Stress Resistant
Cable TypeDisplayPort/Mini DisplayPort
Connector Type on First EndDisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second EndMini DisplayPort 1.2 Digital Audio/Video - Male
Connector PlatingGold
American Wire Gauge34 AWG
Supported Resolution7680 x 4320
Connector on First End Details1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male


Miscellaneous

Compatibility
Nvidia Quadro Graphic Cards:P620
P600
P400

AMD Graphic Cards:Radeon Pro VII
Radeon Pro SSG
Radeon Pro WX9100
Radeon Pro WX4100
Radeon Pro WX3200
Radeon Pro WX3100
Radeon Pro WX2100
Radeon Pro W5700
Radeon Pro W5500
FirePro W9100
FirePro 900
FirePro 600
FirePro 4100

REACH Declaration URL media.startech/cms/pdfs/dp14mdpmm1mb_rohs.pdf
EU RoHS Declaration URL media.startech/cms/pdfs/dp14mdpmm1mb_rohs.pdf
End of Life Manual AvailabilityYes
REACH free of SVHCYes
WEEE Statement media.startech/cms/pdfs/dp14mdpmm1mb_weee.pdf

General Information

Product TypeA/V Cable
Manufacturer Part NumberDP14MDPMM1MB
startech/uk
Packaged Quantity1 Each
ManufacturerStarTech
Product NameMini Displayport to Displayport Cable
Brand NameStarTech
