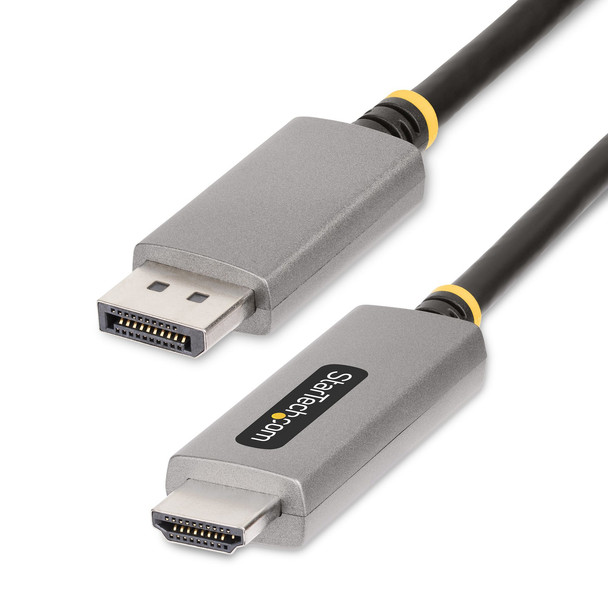

Startech 6ft 2m DisplayPort to HDMI Adapter Cable 8K 60Hz 4K 144Hz HDR10 DP 1.4 133DISPLAYPORTHDMI21

Connect a DisplayPort source to an HDMI display up to 6.6ft (2m) away, with support for up to 8K 60Hz w/HDR videoConnect an 8K 60Hz or a 4K 144Hz HDMI display to a DisplayPort-enabled desktop at a distance of up to 6.6ft (2m), using this DisplayPort to HDMI Adapter Cable.High-Resolution HDR VideoThis DP to HDMI Cable enables resolutions of up to 8K 60Hz and is HDMI 2.1 FRL complaint. It supports HDR10, HDCP 1.x/2.2/2.3, and DSC 1.1/1.2a. The adapter cable supports 7.1 channel audio with Dolby Atmos and DTS:X.Hardware PlatformSingle MonitorDisplayPort Alt ModeIntel 11 th Gen & Later Processors8K 60Hz or 4K 144Hz*DisplayPort 1.4Nvidia RTX3000 and AMD RX6000 or later8K 60Hz or 4K 144HzDisplayPort 1.4Intel 10th Gen & Earlier4K 60HzDisplayPort 1.4orDisplayPort 1.2*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or laterUniversal CompatibilityThe DisplayPort to HDMI Converter Cable is compatible with desktops from various brands such as Dell, HP, Lenovo, and more. It works with all hardware platforms and any operating system. The DP to HDMI Cable requires no drivers or software and works with dedicated graphics card from Nvidia and AMD.Thoughtfully DesignedCombining a video adapter and cable minimizes potential points of failure and signal loss. Adaptive receiver equalization optimizes the input signal and amplifies the output signal to ensure compatibility with high-resolution monitors. The cable is equipped with cage shielding to prevent Electromagnetic Interference (EMI).The StarTech.com Advantage

Features


HIGH PERFORMANCE: 6.6ft (2m) DisplayPort to HDMI Adapter Cable connects a DisplayPort-enabled desktop to an 8K 60Hz/4K 144Hz HDMI Display; Intel 11th Gen Processor & later or a dedicated graphics card with DP 1.4 & DSC is required for maximum performance


NO DRIVERS OR SOFTWARE: Universal Adapter Cable is compatible with all hardware platforms and any operating system; Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage


HOST COMPATIBILITY: DisplayPort to HDMI Cable works with desktops from Dell, HP, Lenovo, and more; Backward compatible with 4K 60Hz and DP 1.2; Apple M1/M2 devices will not achieve 8K 60Hz, unless a dedicated graphics card with DP 1.4 & DSC is installed


BUILD QUALITY & DESIGN: Integrated video adapter and cable minimizes failure points and signal loss; Built with adaptive receiver equalization to optimize input signal & amplify output signal ensuring display compatibility; Cage shielding prevents EMI


TECHNICAL SPECIFICATIONS: 6.6ft (2m) DP 1.4 to HDMI Converter Cable is HDMI 2.1 FRL compliant, supporting HDR10, HDCP 1.x/2.2/2.3 and DSC 1.1/1.2a; Unidirectional cable: DP to HDMI; 7.1ch HDMI audio with Dolby Atmos and DTS:X; Outside Cable Diameter: 6mm



Weight & dimensions


Height
mm


Width

21 mm


Weight
9 g


Cable diameter

6 mm



Logistics data


Master (outer) case width

415 mm


Master (outer) case height

420 mm


Products per master (outer) case
0 pc(s)


Master (outer) case length

435 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

RoHS



Features


Chipset

VMM7100


Maximum resolution

7680 x 4320 pixels


DisplayPort version

1.4


Supported graphics resolutions
20 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 5120 x 1440, 7680 x 4320


Maximum refresh rate
4 Hz


Cable length

2 m


High Dynamic Range (HDR) supported

Yes


Product colour

Black, Silver


Connector 2

HDMI


HDCP

Yes


Connector 1

DisplayPort


Connector 1 gender

Male


Connector 2 gender

Male


Dolby technologies

DTS:X, Dolby Atmos


Connector contacts plating

Nickel


HDCP version

1.4/2.2/2.3


Connector 1 form factor

Straight


Cable type

Round cable


Connector 2 form factor

Straight


Converter type

Active video converter


High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10)


HDMI version

2.1


Jacket material

Polyvinyl chloride (PVC)


Supported audio channels

7.1



Operational conditions


Operating temperature (T-T)

0 - 40 °C


Operating relative humidity (H-H)

0 - 80


Storage temperature (T-T)

0 - 75 °C



Packaging data


Quantity per pack

1 pc(s)


Package depth

220 mm


Package width
0 mm
