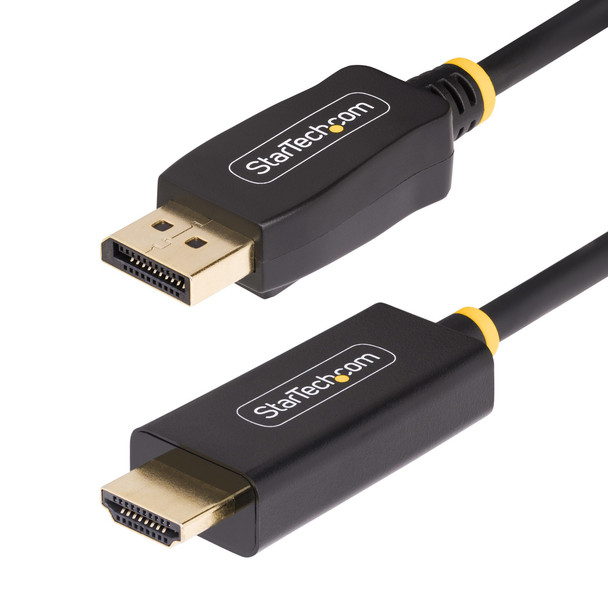

Startech 9.8ft DP to HDMI Cable 4K 60Hz With HDR 10F-DP-HDMI-4K60-HDR

Connect a DisplayPort source to an HDMI display up to 9.8ft (3m) away, with support for up to 4K 60Hz HDR videoConnect a DisplayPort-enabled desktop to 4K 60Hz High Dynamic Range (HDR)-capable HDMI monitor, using this 9.8-foot (3-meter) Active DisplayPort to HDMI Adapter Cable.4K 60Hz HDR CapabilitiesHDR improves visual quality by providing a wide assortment of colors across a dynamic range of brightnesses, resulting in a more vibrant viewing experience. The DP 1.4 to HDMI 2.0b adapter supports 18Gbps bandwidth, allowing for 4:4:4/RGB color space, 8-bit with dithering, and 7.1ch audio. It also supports HBR3 and HDCP 1.4/2.3.CompatibilityThe Universal Adapter Cable is compatible with all hardware platforms and any operating system. Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities, enabling high-performance graphics with minimal CPU usage.Designed and Built for IT ProfessionalsIntegrated video adapter cable reduces points of failure, signal loss and clutter, and requires no additional power. Built with adaptive receiver equalization to optimize the input signal and amplify the output signal, to ensure display compatibility. Cage shielding prevents Electromagnetic Interference (EMI) and helps maintain signal integrity. This Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers. It is backward compatible with 4K 30Hz, 1080p, and other lower resolutions.The StarTech.com Advantage

Features


HIGH-PERFORMANCE: 9.8-foot (3-meter) DisplayPort to HDMI Adapter Cable connects a DisplayPort-enabled desktop to an HDR-capable 4K 60Hz HDMI display; HBR3 18Gbps bandwidth; Supports 4:4:4/RGB color space, 8-bit w/dithering, 7.1ch audio, and HDCP 1.4/2.3


HDR ADAPTER CABLE: HDR improves visual quality by providing a wider range of brightness level and colors, resulting in a dynamic viewing experience; Integrated video adapter cable reduces potential points of failure, signal loss, and clutter


NO DRIVERS OR SOFTWARE: Universal Adapter Cable is compatible with all hardware platforms and any operating system; Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage


BUILD QUALITY & DESIGN: Built with adaptive receiver equalization to optimize input signal and amplify output signal to ensure display compatibility; Cage shielding prevents Electro-Magnetic Interference (EMI) and helps maintain signal integrity


HOST COMPATIBILITY: Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers; Backward compatible with 4K 30Hz, 1080p, and other lower resolutions; Latching DisplayPort ensures reliable connection to the computer



Weight & dimensions


Weight
3 g


Cable diameter

5 mm



Logistics data


Master (outer) case width

400 mm


Master (outer) case height

300 mm


Products per master (outer) case

60 pc(s)


Master (outer) case length

300 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

RoHS



Features


Chipset

Synaptics - VMR7100


Maximum resolution

4096 x 2160 pixels


Colour depth
bit


DisplayPort version

1.4


Supported graphics resolutions
48 x 1536 (QXGA), 3840 x 2160, 2560 x 1440, 4096 x 2160, 1920 x 1200 (WUXGA), 3072 x 1728, 3200 x 1800


Cable length

3 m


Connector 2

HDMI Type A (Standard)


HDCP

Yes


Connector 1

DisplayPort


Connector contacts plating

Gold


HDCP version

1.4/2.3


Cable type

Round cable


Refresh rate at maximum resolution

60 Hz


Bandwidth
000 MB/s


Jacket material

Polyvinyl chloride (PVC)


Maximum refresh rate
0 Hz


High Dynamic Range (HDR) supported

Yes


Product colour

Black


Connector 1 gender

Male


Connector 2 gender

Male


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Colour sampling

4:4:4


Converter type

Active video converter


HDMI version

2.0b


Supported audio channels

7.1



Operational conditions


Operating temperature (T-T)

0 - 40 °C


Operating relative humidity (H-H)
- 90


Storage temperature (T-T)

-10 - 70 °C



Packaging data


Package height
mm


Quantity per pack

1 pc(s)


Package depth
0 mm


Package width
0 mm


Package weight
0 g
