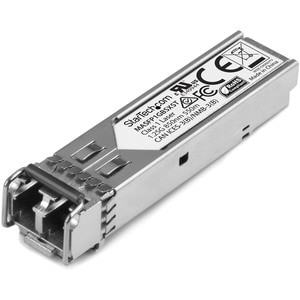

Startech Cisco Meraki Ma-Sfp-1Gb-Sx Comp. Sfp Module 1000Base-Sx 1Gbe Gigabit Et MASFP1GBSXST

StarTech Cisco Meraki MA-SFP-1GB-SX Comp. SFP Module - 1000BASE-SX - 1GbE Gigabit Ethernet SFP Multimode Fiber MMF Optic Transceiver - Cisco Meraki MA-SFP-1GB-SX Compatible SFP - 1000BASE-SX 1 Gbps - 1GbE Module - 1GE Gigabit Ethernet SFP 850nm - Multi Mode (MMF) Transceiver - 550m (1804ft) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki--- brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft). Technical Specifications: Wavelength: 850nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550m (1804 ft) MTBF: 1,967,709 hours Power Consumption: Less than 1.2 Watts Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech SFPs All StarTech SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. More from the Manufacturer More from the Manufacturer
Technical Information

Application/UsageData Networking
Optical Network

Interfaces/Ports

Interfaces/Ports Details1 x LC Duplex 1000Base-SX Network
Connector TypeLC
Total Number of Ports1

Media & Performance

Network Technology1000Base-SX
Ethernet TechnologyGigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode

Miscellaneous

CompatibilityMSA Compliant
Cisco Meraki Switches:MS225
MX400
MS250
MS350
MX84

REACH Declaration URL media.startech/cms/pdfs/masfp1gbsxst_rohs.pdf
EU RoHS Declaration URL media.startech/cms/pdfs/masfp1gbsxst_rohs.pdf
End of Life Manual AvailabilityYes
REACH free of SVHCYes
WEEE Statement media.startech/cms/pdfs/masfp1gbsxst_weee.pdf


Physical Characteristics

Weight (Approximate)14.2 g
Form FactorHot-swappable
Hot-pluggable
Height12.7 mm
Width12.7 mm
Depth55.9 mm

General Information

Product TypeSFP (mini-GBIC)
Manufacturer Part NumberMASFP1GBSXST
startech/uk
Packaged Quantity1 Each
ManufacturerStarTech
Product NameCisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX
Brand NameStarTech
