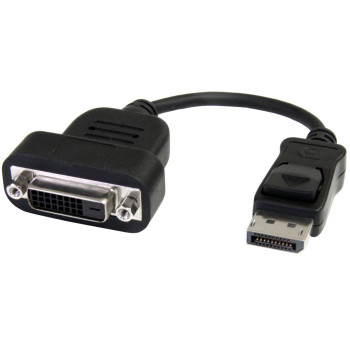

StarTech.com 12.7cm DisplayPort to DVI Video Adaptor Converter DP2DVI

Connect a DVI monitor to a single-mode DisplayPort output from your computerThis DisplayPort to DVI adapter lets you connect your DP computer to a DVI monitor or projector. The adapter works with DisplayPort computers like your HP Elitebook Revolve 810 G3.Easily connect your DisplayPort computer to a DVI displayThe DP to DVI adapter lets you connect your DisplayPort laptop or desktop computer to a DVI display. The adapter supports plug-and-play connectivity ensuring a hassle-free setup.Works with legacy DVI monitorsThe DisplayPort adapter makes your DP computer fully compatible with existing DVI monitors or projectors in your home or around your office. The DVI connector features nuts that mate with the screws on standard DVI cables, to ensure your video cable won't get disconnected.Designed for maximum portabilityThe DisplayPort to DVI converter maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort Ultrabook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.Crystal-clear picture qualityWith support for video resolutions up to 1920x1200 or 1080p, you'll be surprised at the picture quality the adapter provides, even when connected to a legacy DVI monitor or projector. The adapter harnesses the video capabilities built into your DP connection to deliver every detail in stunning high-definition.The DP2DVI is backed by a 3-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

Features


DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 (HBR2) to DVI-D single-link adapter connects a DVI display or projector supporting 1920x1200 & 1080p at 60Hz; EDID pass-through ensures compatibility between source & display / 6.3" (16cm) attached cable


COMPATIBILITY: Passive video converter supports DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations


CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI display adapter; Durable design makes it ideal for travel to & from office/home /Tested w/ DVI cables up to 25ft


LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection


EASY TO USE: With no software or drivers required, the DP to DVI adapter converter dongle works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI female adapter



Weight & dimensions


Height
mm


Width

44 mm


Weight

63 g


Depth

240 mm



Logistics data


Master (outer) case width

337 mm


Master (outer) case height

220 mm


Products per master (outer) case

80 pc(s)


Harmonized System (HS) code

84733080


Master (outer) case length

505 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Features


HBR2 support

Yes


Maximum resolution
20 x 1200 pixels


DisplayPort version

1.2


Cable length

0.24 m


Product colour

Black


Connector 2

DVI-D


Connector 1

DisplayPort


Dual Link DVI

No


Connector 1 gender

Male


Connector 2 gender

Female


Supported video modes
80p


Connector 1 form factor

Straight


Audio connector

No


Connector 2 form factor

Straight


Converter type

Passive video converter


Plug and Play

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 °C


Operating relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-20 - 70 °C



Packaging data


Package height
mm


Quantity per pack

1 pc(s)


Package depth

220 mm


Package width
0 mm


Package weight

72 g
