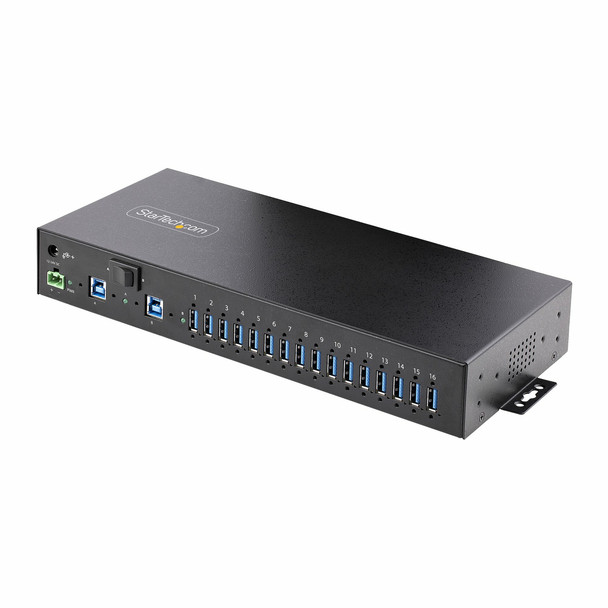

StarTech.com 16-Port Industrial USB 5Gbps Hub with Power Adapter Metal Enclosure S5G16AINDS-USB-A-HUB

Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub

The 16-Port Industrial USB 5Gbps Hub with Power Adapter features 16 downstream USB-A ports. The rugged all-metal construction is suitable for use in industrial rackmount applications. Level-4 Electrostatic Discharge (ESD) protection safeguards against 15kV Air / 8kV Contact discharges. The hub features a 2-port host switch, enabling users to switch between two host devices.

Engineered for Use in Industrial Environments

This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that protects against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity.

Three Mounting Options

The 16-Port USB hub can be attached to a surface (e.g., atop/underneath a desk or wall mounted), rack mounted, or DIN-rail mounted. The 19" rackmount rails are compliant with EIA-310-D standards, ensuring compatibility with standard racks. These rails can be used to install the USB hub into 1U of rack space for applications in data centers and server rooms. Mount industrial automation and control equipment in an electrical enclosure or cabinet, using the standard DIN-rail (Top Hat/TH) mounting hardware.

Power Adapter Included

This USB hub includes a 160W power adapter that connects to the 2-wire terminal block connector. When connected to the power adapter, the USB hub supports USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports a maximum of 3.0A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.

For optional power redundancy, the USB hub features a secondary power input where a barrel-power adapter (not included) can be connected. The barrel-power input supports a 12-to-24-volt input range, and can be ideal for mission critical applications.

Dual-Host Switch

The USB Hub connects to two desktop or laptop computers, and features a dual-host switch enables easy toggling between the host devices.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. This product utilizes the USB Event Monitoring utility. Use this utility to track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The StarTech.com Advantage

Features

-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download)


FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections


INCLUDED 160W POWER ADAPTER: The rugged USB Hub is powered by the included power adapter using the built-in DC 2-wire terminal block; Overcurrent protection protects connected devices from overdrawing power; DC barrel jack for optional power redundancy


POWER & CHARGE: When connected to the power adapter, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging


DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch



Weight & dimensions


Weight

1.1 kg



Packaging content


Cables included

USB Type-A to USB Type-B


DIN rail kit included

Yes


Quick start guide

Yes


Terminal block included

Yes


AC adapter included

Yes



Logistics data


Master (outer) case width

508 mm


Master (outer) case height

318 mm


Products per master (outer) case

5 pc(s)


Master (outer) case length

403 mm



Sustainability


Sustainability compliance

Yes



Technical details


Compliance certificates

Trade Agreements Act (TAA)



Other features


Chipset

Genesys Logic - GL3523


Rack mounting

Yes



Features


Data transfer rate

5000 Mbit/s


Product colour

Black


Housing material

Steel


Electrostatic Discharge (ESD) protection (contact)

8 kV


Electrostatic Discharge (ESD) protection (air)
kV


LED indicators

Power, Status


Plug and Play

Yes



Operational conditions


Operating relative humidity (H-H)

5 - 95


Operating temperature (T-T)

0 - 60 C


Storage temperature (T-T)

-20 - 75 C



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity



Host interface

2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B


Ports quantity



Hub interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A


Terminal block port

Yes



Performance


Mean time between failures (MTBF)
2383.8 h



Power


Input voltage
0 - 240 V


Output voltage

24 V


Input current

3.5 A


Output current

6.6 A


Power consumption (max)
8.4 W



Packaging data


Package height

98 mm


Package depth

368 mm


Package width

273 mm


Package weight

1.8 kg
