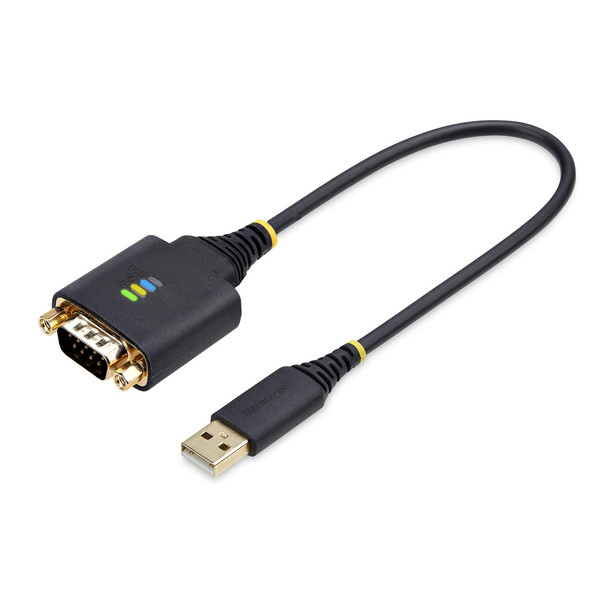

StarTech.com 1ft 30cm USB to Serial Adapter Cable COM Retention Interchangeable 1P1FFC-USB-SERIAL

Add an RS232 serial port to a laptop or desktop, using an available USB-A port

Add RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 1-foot (30-centimeter) straight through USB to Serial Adapter Cable.

Serial Port Expansion

The USB Serial Adapter adds an RS-232 serial DB/DE-9 (male) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable DB-9 nuts or install the included slotted D-Sub thumbscrews for compatibility with other serial peripheral devices or cables.

LED Indicators

Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.

Seamless Connectivity

The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.

Built To Last

The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.

The StarTech.com Advantage

Features


INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 nuts, or install the included DB9 screws for compatibility with serial peripheral devices/cables; Add a DB9 RS-232 port to a computer, using a USB-A port


LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop


COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted


BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Extended operating temperature of -40C to 80C


TECH SPECS: 1-foot (30-centimeter) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte RX and 256 Byte TX FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits



Weight & dimensions


Weight

30 g



Packaging content


Manual

Yes



Logistics data


Master (outer) case width

600 mm


Master (outer) case height

345 mm


Products per master (outer) case

60 pc(s)


Master (outer) case length

485 mm



Features


Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022


Chipset

FTDI - FT232R


Product colour

Black


Cable length

0.3 m


Connector 2

DB-9


Connector 1

USB Type-A


Connector 1 gender

Male


Connector 2 gender

Male


Linux operating systems supported

Yes


Connector 1 form factor

Straight


Data bits

6, 7, 8


Connector 2 form factor

Straight


Parity bit

Even, Mark, No, Odd, Space


Baud rate

921.6 Kbit/s


FIFO (First In, First Out)

256 B


Stop bits

1, 2



Operational conditions


Operating temperature (T-T)

-40 - 80 C


Operating relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-40 - 80 C



Packaging data


Package height
mm


Quantity per pack

1 pc(s)


Package depth

300 mm


Package width

220 mm


Package weight

35 g
