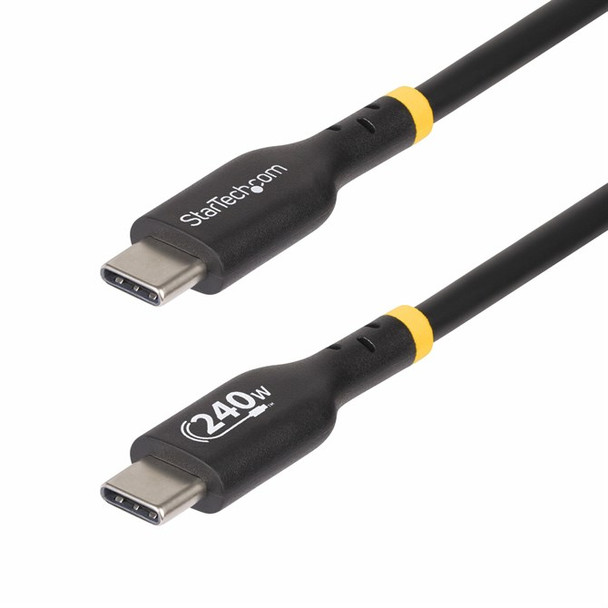

StarTech.com 1m USB-C Charging Cable USB-IF Certified USB C Cable 240W PD EPR US USB2EPR1M

Charge high performance USB-C devices at up to 240W Extended Power Range (EPR)

Connect a charger to a USB Power Delivery (PD) 3.1-enabled device, using this USB-C Charging Cable. The USB C charger cord facilitates up to 240W of USB-C Extended Power Range (EPR) Power Delivery and 5A output for fast charging. It supports USB 2.0 (480Mbps) throughput for general file transfer.

Quality Construction

Designed for frequent use, the USB-C EPR Charging Cable features a rugged TPE outer jacket for increased wear resistance. The durable nickel-plated connectors are rated to operate beyond 10,000 insertion cycles, enhancing its durability and longevity.

Charge Mobile Devices On The Go

Charge a USB-C device with a USB-C wall charger, car charger, or power bank. The 1m (3.3ft) USB Type-C cable is the ideal length for desk and mobile workstations, commuters, in-car use or to reduce clutter when syncing with a USB-C laptop.

Power a Laptop

With up to 5A of output, the USB-C Charger Cord supports up to 240W of Power Delivery to charge a USB-C laptop, or fast charge a tablet or smartphone. To use, connect the cable from a USB-C laptop to a USB-C wall charger.

The StarTech.com Advantage

Specs




Features


USB version

Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

USB 2.0


Connector 1

This is the first connector in the device.

USB C


Connector 2

This is the second connector in the device.

USB C


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


Connector 1 form factor

Straight


Connector 2 form factor

Straight


AWG wire size

30


Connector contacts plating

What the connector contacts are covered with (layer on top).

Nickel


Cable jacket material

Thermoplastic elastomer (TPE)


Cable shielding

The protective layer for the cable, typically made of plastic.

Aluminum mylar foil


Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

480 Mbit/s


Maximum data transfer rate

0.48 Gbit/s


Product colour

The colour e.g. red, blue, green, black, white.

Black


USB Power Delivery (USB PD)




USB Power Delivery revision

3.1


USB Power Delivery up to

240 W


USB Type-C DisplayPort Alternate Mode





Power


Input current (max)

5 A


Weight & dimensions


Cable length

How long the cable is.

1 m


Cable diameter

The distance from one side of the cable to the other, with a straight line going through the middle of the cable.

4 mm


Packaging data


Package width

The distance from one side of the packaging to the other.

225 mm


Package depth

The distance from the front to the back of the packaging.
5 mm


Package height

The distance from the top to the bottom of the packaging.
mm


Package weight

Weight of the packaged product.

25 g


Packaging content


Quantity per pack

1 pc(s)


Sustainability


Sustainability compliance




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-10 - 60 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 70 -C


Certificates


Compliance certificates

CE, Federal Communications Commission (FCC), RoHS


Logistics data


Products per master (outer) case
0 pc(s)


Master (outer) case width

500 mm


Master (outer) case length

320 mm


Master (outer) case height

210 mm
