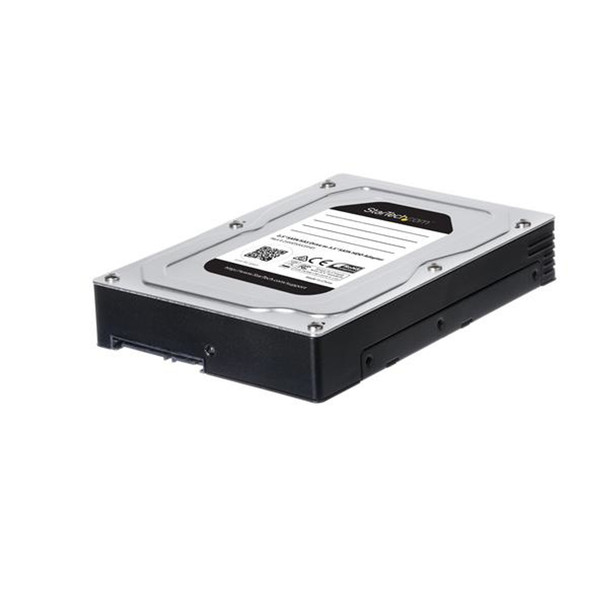

StarTech.com 2.5 to 3.5 Hard Drive Adaptor for SATA and SAS Drives 25SATSAS35HD

Turn almost any 2.5" SATA/SAS drive into a 3.5" drive

This 2.5" to 3.5" hard drive adapter lets you install a 2.5" SATA or SAS hard drive (HDD) or solid-state drive (SSD) into an internal or external 3.5" drive bay, using standard drive-mounting holes.

Convert a 2.5" drive into a 3.5" drive

The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD.

To utilize the full speed potential of your SATA/SAS drive, the adapter supports transfer speeds up to 6Gbps.

Easy and flexible installation

You can install the adapter into a desktop, server, storage-array, hot-swap bay, and drive drawer. It offers permanent installation in a 3.5" drive bay with standard mounting holes. When the adapter is installed, you simply slide a 2.5" HDD/SSD into the adapter enclosure, with no tools required.

The adapter is suitable for drives with a height of up to 15 mm. Virtually any 2.5" SATA/SAS drive can be made to look and function like a 3.5" drive.

Identify and track your drives

The adapter includes a label you can use to track and record information about the installed drive.

The 25SATSAS35HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Supports 2.5" form factor drives up to 15 mm in height
- Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs
- Tool-less 2.5" drive installation

Features


Supports 2.5 form factor drives up to 15 mm in height


Installs into an internal or external 3.5 drive bay; uses standard mounting holes for internal installs


Tool-less 2.5 drive installation


Supports SATA I, II and III (up to 6Gbps) and SAS I and II (up to 6Gbps)



Weight & dimensions


Height

26 mm


Width
1 mm


Depth
6 mm


Weight

252 g



Packaging content


Manual

Yes



Logistics data


Harmonized System (HS) code

84733080



Sustainability


Sustainability certificates

RoHS



Features


Supported storage drive heights

7,9.5,12.5,15 mm


HDD size

2.5"


Product colour

Black, Silver


Size (imperial)

8.89 cm (3.5")


Material

Aluminium, Plastic


HDD interface

Serial ATA, Serial Attached SCSI (SAS)


Number of HDDs supported

1


Certification

CE, FCC


Data transfer rate

6 Gbit/s


Key lock

No


Type

Carrier panel


S．M．A．R．T． support

Yes


Hot-swap

Yes



Operational conditions


Operating temperature (T-T)

-20 - 55 °C


Operating relative humidity (H-H)

5 - 65


Storage temperature (T-T)

0 - 55 °C



Packaging data


Package weight

252 g


Package dimensions (WxDxH)
2 x 160 x 35 mm
