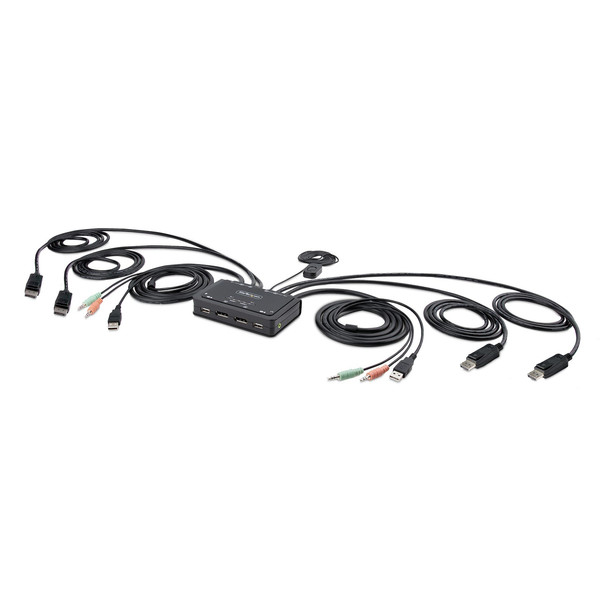

StarTech.com 2-Port Dual-Monitor DisplayPort Cable KVM Switch 4K 60Hz Compact KV C2-DD46-UA2-CBL-KVM

Share a mouse, keyboard, and dual 4K 60Hz DisplayPort displays between two DisplayPort enabled computers, using this KVM Switch with built-in cablesThis Dual-Monitor KVM Switch enables users to switch between two USB-A and DisplayPort enabled desktops, sharing dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and audio input/output devices.Hassle-Free SetupThe KVM switch is bus powered and features built-in dual-DisplayPort, USB-A, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.CompatibilityThe 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.Intuitive ControlThe KVM switch offers two options to switch between hosts - a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility: Setup and save custom windows layouts. MAC Address Pass-Through Utility: Improve network security. USB Event Monitoring Utility: Track and log connected USB devices. Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThe StarTech.com Advantage

Features


DUAL 4K 60HZ MONITOR KVM SWITCH: Enables switching between two USB-A and DisplayPort-enabled desktops to share a mouse, keyboard, audio, and dual-4K 60Hz DisplayPort displays


READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features integrated 5ft/1.5m host cables to allow for extended reach, reducing port and connector strain


SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other


COMPATIBILITY: 2-Port Dual-Monitor KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel and AMD


OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts



Other features


Display resolution at frequency

4096x2160 @60Hz 3840x2160 @60Hz 5120x1440 @60Hz 3440x1440 @60Hz 2560x1440 @60Hz 2560x1080 @60Hz 1920x1200 @60Hz 1920x1080 @60Hz



Ports & interfaces


USB version

2.0


Audio connections

Yes


DisplayPort version

1.2


Keyboard port type

USB


Headphone outputs

2


Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A


DisplayPorts quantity

4


Number of computers controlled

2


Number of microphone inputs

2


Mouse port type

USB


Video port type

DisplayPort


Console USB ports quantity

2


Console DisplayPorts ports quantity

2



System requirements


Other operating systems supported

ChromeOS


Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey



Design


Push button

Yes


Mean time between failures (MTBF)

419293 h


Product colour

Black


Cable length

1.5 m


Hot keys

Yes


Rack mounting

No


Housing material

Acrylonitrile butadiene styrene (ABS)


LED indicators

Yes



Weight & dimensions


Height

25 mm


Width

90 mm


Depth
5 mm


Weight

600 g



Packaging content


Quick installation guide

Yes



Logistics data


Master (outer) case width

440 mm


Master (outer) case height

345 mm


Products per master (outer) case
pc(s)


Master (outer) case length

320 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

RoHS



Operational conditions


Operating temperature (T-T)

0 - 40 -C


Operating relative humidity (H-H)

0 - 90


Storage temperature (T-T)

-20 - 60 -C



Performance


Video bandwidth

60 Hz


Chipset

SN8P2202SG


Maximum resolution

4096 x 2160 pixels


Audio channels

2.0


Scan interval
,20,30,40,50,60 s


Data transfer rate (max)

0.48 Gbit/s


HD type

4K Ultra HD



Power


Power source

USB



Display


Built-in display

No



Packaging data


Package height

210 mm


Package depth
0 mm


Package width
0 mm


Package weight

700 g
