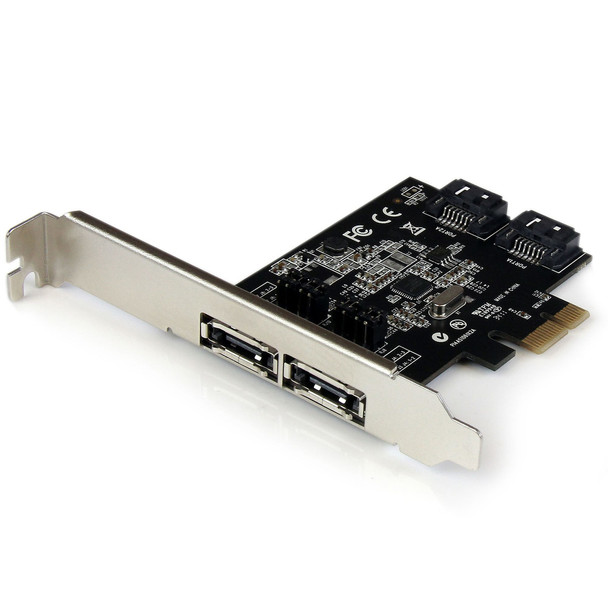

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PC PEXESAT322I

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slotThe PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.The StarTech.com Advantage

Features


IMPROVE STORAGE CAPACITY: This 2-Port PCIe SATA and eSATA Controller Card enables support of two internal SATA or external (eSATA) drives through PCI Express; A cost-effective solution to increase your system's storage capacity


ASM1061 CONTROLLER: This SATA and eSATA controller card features a dedicated chipset to enable two switchable SATA and eSATA 6Gbps ports via a single x1 PCIe slot; Supports FIS-based Port Multiplier, Command-based switching, NCQ, and ATA/ ATAPI commands


WIDE COMPATIBILITY: Supports Windows and standard SATA and eSATA SSDs (solid-state drives) and HDDs (hard drives); Supports SATA III (6 Gbps) and earlier revisions; Compliant with PCI Express 2.0


CONVENIENT SETUP: This 2-port SATA/eSATA controller card installs in a full or low-profile PCIe slot; Compatible with PCIe x1, x4, x8, or x16 slots; Includes full-profile (pre-installed) & low-profile brackets, and 7-pin SATA cable


THE IT PRO'S CHOICE: Designed and built for IT professionals, this 2-Port SATA and eSATA Controller Card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance



Design


Internal

Yes


Certification

CE, FCC, REACH



Weight & dimensions


Height

20 mm


Width

92 mm


Depth

121 mm


Weight

48 g



Logistics data


Master (outer) case width

307 mm


Master (outer) case height

360 mm


Products per master (outer) case

80 pc(s)


Harmonized System (HS) code

84733020


Master (outer) case length

586 mm



Technical details


Sustainability certificates

RoHS



Features


Logical block addressing (LBA) support

48 bit


Chipset

ASMedia - ASM1061


Native Command Queuing (NCQ)

Yes



Operational conditions


Operating temperature (T-T)

0 - 50 �C


Operating relative humidity (H-H)

5 - 85


Storage temperature (T-T)

-20 - 60 �C



Ports & interfaces


Port multiplier

Yes


Host interface

PCIe


eSATA ports quantity

2


Internal SATA ports quantity

2


Output interface

SATA


SATA revision

3.0



System requirements


Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019



Packaging data


Mounting brackets included

Yes


Package height

30 mm


Cables included

SATA


Package depth

144 mm


Package width

173 mm


Package weight

152 g


Quantity

1


Manual

Yes


Drivers included

Yes
