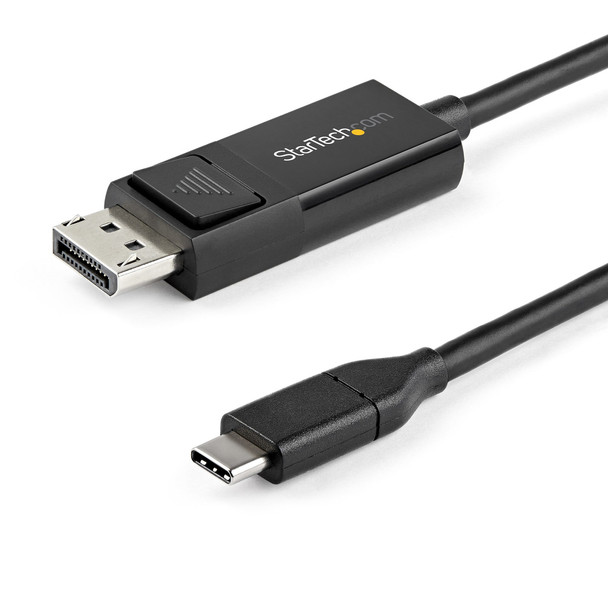

StarTech.com 2m USB-C to DisplayPort 1.2 Cable Bi-Directional CDP2DP2MBD

USB Type-C Adapter Cable | 4K 60Hz | Thunderbolt 3

This USB-C to DisplayPort 1.2 cable lets you connect your USB Type-C (or Thunderbolt 3) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.

Easy & Clutter-Free Installation

At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.

As well, the cable works with both Mac and Windows devices and allows for plug-and-play installation, removing the need for any additional software or drivers.

Convenient, Bi-Directional Support

Use this USB-C to DisplayPort adapter cable to output 4K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input.

Ultra HD 4K Resolution at 60Hz

This USB-C to DP 1.2 adapter cable lets you harness the video capabilities that are built into your computer's USB Type-C (or DisplayPort) connection, to deliver the astonishing quality of UHD to your 4K display. For even higher resolution and bandwidth support, we offer a USB-C to DP 1.4 cable, which is the perfect accessory for early adopters of 8K.

CDP2DP2MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.

The StarTech.com Advantage

- HIGH PERFORMANCE: 6.6ft/2m Reversible USB-C to DisplayPort 1.2 (21.6Gbps) cable or DP to USB-C cable supports 4K 60Hz/HBR2/HDR/HDCP 2.2/1.4
- 1080p & Thunderbolt 3 compatible
- REVERSIBLE CABLE: This DisplayPort to USB C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display

Features


HIGH PERFORMANCE: 6.6ft/2m Reversible USB-C to DisplayPort 1.2 (21.6Gbps) cable or DP to USB-C cable supports 4K 60Hz/HBR2/HDR/HDCP 2.2/1.4


1080p & Thunderbolt 3 compatible


REVERSIBLE CABLE: This DisplayPort to USB C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display


DP OR USB-C DP ALT MODE HOST COMPATIBLE: USB-C video cable for Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface Laptop 3/Pro, TB3 MacBook Pro/Air, HP EliteBook/Spectre/ZBook


DP OR USB-C MONITOR COMPATIBLE: Use this DisplayPort to USB C cable to convert from a DP host to a USB-C monitor; supports USB-C 16:9 & ultrawide monitors from LG, Dell UltraSharp, Acer, Asus Pro Art


INTEGRATED VIDEO ADAPTER CABLE: Supports driverless setup on any OS, minimizes failure points & signal loss, and features latching DP connector to ensure a reliable & consistent connection



Weight & dimensions


Height

12 mm


Width

220 mm


Weight

77 g


Depth

2038 mm



Logistics data


Master (outer) case width

327 mm


Master (outer) case height

212 mm


Products per master (outer) case

80 pc(s)


Harmonized System (HS) code

84733080


Master (outer) case length

497 mm



Sustainability


Sustainability certificates

CE, RoHS



Features


HBR2 support

Yes


Chipset

Chrontel - CH7213C-BF, VIA Labs - VL170


Maximum resolution

3840 x 2160 pixels


DisplayPort version

1.2


Maximum refresh rate

60 Hz


Cable length

2 m


High Dynamic Range (HDR) supported

Yes


Product colour

Black


Connector 2

DisplayPort


HDCP

Yes


Connector 1

USB Type-C


Connector 1 gender

Male


Connector 2 gender

Male


HDCP version

1.4/2.2


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Bandwidth

21600 MB/s


Converter type

Active video converter


Supported audio channels

7.1


Plug and Play

Yes



Operational conditions


Operating temperature (T-T)

0 - 45 �C


Operating relative humidity (H-H)

10 - 85


Storage temperature (T-T)

-10 - 70 �C



Packaging data


Package height

12 mm


Quantity per pack

1 pc(s)


Package depth

124 mm


Package width

226 mm


Package weight

84 g
