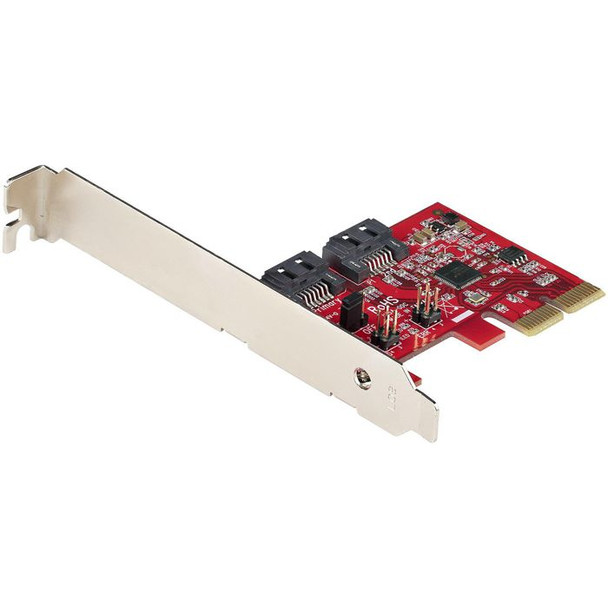

StarTech.com 2P6GR-PCIE-SATA-CARD Sata Pcie Card - 2 Port Pcie 2P6GR-PCIE-SATA-CARD

SATA III (6Gbps) | Hardware RAID | PCI Express 2.0 | PCIe x1 Slot | 2x SATA Connectors | 2-Year WarrantyThis 2-port SATA III (6Gbps) controller with RAID enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot, and build the disks into a hardware RAID array. The card supports SATA III and PCI-Express 2.0 Specifications, and can also be used to add optical disk drives (ODD) like CD/DVD/Blu-ray to your computer.Versatile Hardware RAID ConfigurationsThis RAID controller supports different hardware RAID configurations to meet your specific application:� RAID 0 (striped) - Splits your data evenly across both drives to increase read/write performance, while also increasing the size of your volume storage capacity to the combined total of both drives.� RAID 1 (mirrored) - Exactly copies your data on both drives to provide data redundancy, so your data will be safely backed-up should one of the drives fail.� SPAN (big) - Combines both drives into a single array to increase the size of your volume storage capacity to the combined total of both drives.� JBOD (Just a bunch of disks) - Exposes both drives as individual devices to be treated independently.ASM1062R to Deliver 2-Port SATA 6Gbps PerformanceFeaturing the ASM1062R controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.For managing and configuring RAID functionality, the card supports OS booting on Windows & Linux for BIOS level RAID setup & configuration, and includes an application on Windows for OS level RAID setup, configuration & monitoring. On macOS only software RAID is supported using RAID Assistant.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included.2P6GR-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.The StarTech.com Advantage

Design



Internal



Yes


LED indicators



Y, Yes


Product colour



Red


Features



Chipset



ASMedia - ASM1062R


Data transfer rate (max)



6 Gbit/s


RAID levels



0, 1, BIG, JBOD


S.M.A.R.T. support



Yes


TRIM support



Yes


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



31 cm


Master (outer) case length



37 cm


Master (outer) case width



50 cm


Products per master (outer) case



60 pc(s)


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 85 �C


Storage temperature (T-T)



-25 - 85 �C


Package dimensions



Depth (package,cm)



17.5 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3 cm


Width (package,cm)



14.2 cm


Packaging data



Mounting brackets included



Yes


Quick installation guide



Yes


Ports & interfaces



Expansion card standard



PCIe 2.0


Host interface



PCIe


Internal SATA ports quantity



2


Output interface



SATA


Port multiplier



Yes


SATA revision



3.0


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



2.2 cm


Product Height



12.1 cm


Product Width



6.9 cm


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura


Server operating systems supported



Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
