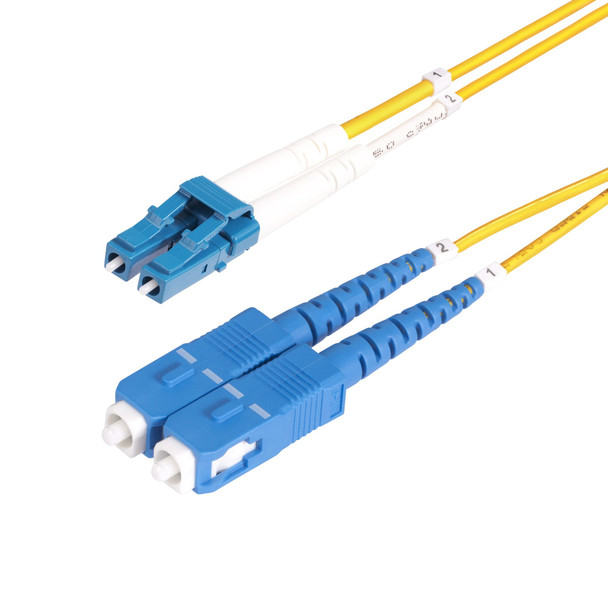

StarTech.com 3m 10ft LC to SC UPC OS2 Single Mode Duplex Fiber Optic Cable 9/125 SMLCSC-OS2-3M

Enhance the performance capabilities of CWDM applications over an OS2 fiber networkOS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 10G networks. It supports CDWM (Coarse Wavelength Division Multiplexing) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.CompatibilityThis 9/125�m Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.Engineered for Optimal PerformancePrecision-manufactured ceramic ferrules ensure correct fiber alignment to preserve insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to SC fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.LSZH Cable JacketHoused in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.The StarTech.com Advantage

Features


OS2 FIBER CABLE: Single Mode OS2 Fiber Cable is immune to EMI and optimized for 10Gbps networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel isolation over long distances


QUALITY CONSTRUCTION: LC/SC-UPC ends for improved return loss over PC polish; Color-coded connectors for polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm


SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards


COMPATIBILITY: Single Mode Fiber Patch Cord supports 10G networks; Backward compatible with OS1; High micro-bending resistance facilitates tight bends in intricate installations; Ideal for connecting between servers/switches and data center equipment


SPECS: 3m (9.8ft); OS2 Single Mode; LC/SC (UPC) Duplex; 10Gbps; 9/125�m; 1260-1625nm Laser Optimized; Insertion Loss: ?0.3dB; Return Loss: ?55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded



Weight & dimensions


Bending radius

1 cm


Cable diameter

2 mm



Logistics data


Master (outer) case width

380 mm


Master (outer) case height

280 mm


Products per master (outer) case

400 pc(s)


Master (outer) case length

380 mm



Technical details


Sustainability compliance

Yes


Sustainability certificates

RoHS



Other features


Attenuation (max)

0.35 dB/km



Features


Fiber mode structure

Single-mode


Core diameter

9 �m


Return loss

55 dB


Cable length

3 m


Product colour

Yellow


Wavelengths supported

1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm


Connector 2

SC


Connector 1

LC


Connector 1 gender

Male


Connector 2 gender

Male


Cladding diameter

125 �m


Fibre optic type

OS2


Data transfer rate

10 Gbit/s


Insertion loss

0.3 dB


Full duplex

Yes


Jacket material

Low smoke zero halogen (LSZH), Polypropylene


Connector polish type

PC



Operational conditions


Operating temperature (T-T)

-20 - 60 �C


Storage temperature (T-T)

-20 - 60 �C



Packaging data


Package height

3 mm


Quantity per pack

1 pc(s)


Package depth

220 mm


Package width

200 mm


Package weight

32.2 g
