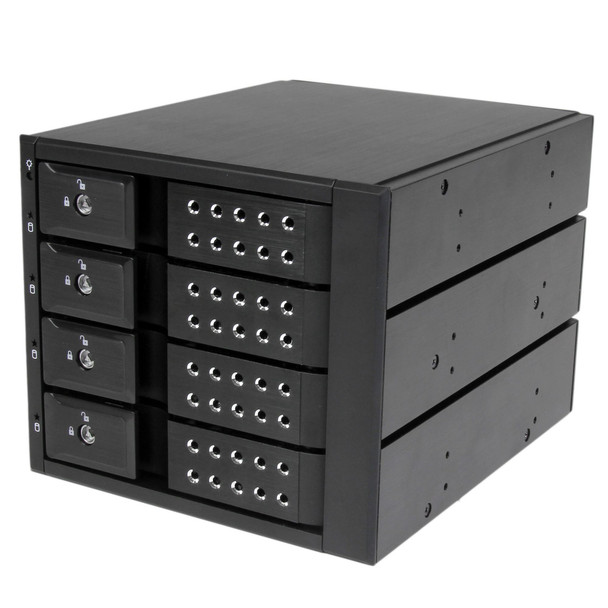

StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5 " SA HSB4SATSASBA

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces
- Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan

Features


Solid aluminum construction


Key lock design


Built-in Fan


4 drive bay design


Installs in three 5.25 drive bays


Trayless design for easier hot swapping


Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)


Support for SAS revision I/II (3.0/6.0 Gbps)


Power and Activity LEDs for each drive


UL94 - V0 flammability rating



Weight & dimensions


Height

124 mm


Width

145 mm


Depth

197 mm


Weight

1.3 kg



Packaging content


Cables included

SATA


Manual

Yes


Screws included

Yes



Logistics data


Master (outer) case width

385 mm


Master (outer) case height

281 mm


Products per master (outer) case

6 pc(s)


Master (outer) case length

516 mm


Harmonized System (HS) code

84733080



Sustainability


Sustainability certificates

RoHS



Features


Number of fans

1 fan(s)


Data transfer rate

6 Gbit/s


Key lock

Yes


Product colour

Black


Hot-swap

Yes


Material

Aluminium


Fan diameter

7 cm


Certification

CE, FCC


LED indicators

Activity, Power



Operational conditions


Operating temperature (T-T)

0 - 55 �C


Operating relative humidity (H-H)

5 - 85


Storage temperature (T-T)

-20 - 65 �C



Ports & interfaces


External SATA ports quantity

4



Packaging data


Package height

180 mm


Package depth

164 mm


Package width

254 mm


Package weight

1.59 kg
