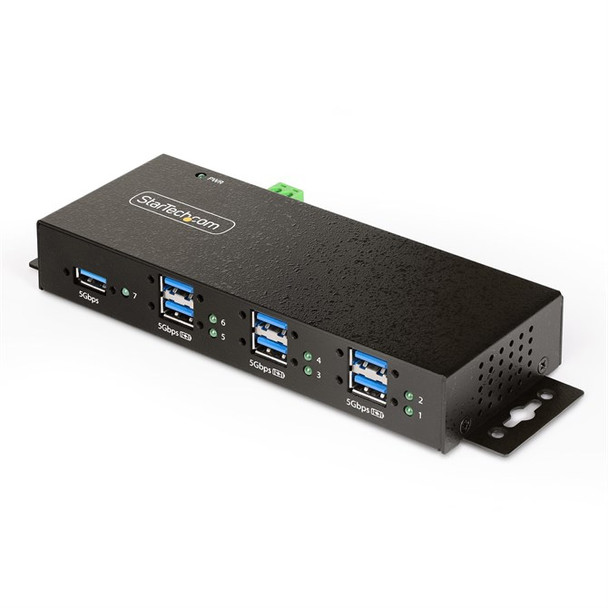

StarTech.com 5G7AINDRM-USB-A-HUB interface hub USB 3.2 Gen 1 3.1 Gen 1 Type-B 50 5G7AINDRM-USB-A-HUB

Connect and manage up to seven USB Type-A devices, using this USB hub - designed for industrial/commercial environments

This 7-port Managed Industrial USB 3.2 Gen 1 (5Gbps) Hub enables users to toggle individual USB ports on/off and to reboot the hub, using the USB Hub Administrator Software (free to download). With robust housing and versatile power input options, the USB Hub is designed to cater to the needs of IT Professionals working in industrial settings such as factories, warehouses, offices, and other similar environments.

Managed USB Hub

The USB Hub Administrator Software is to be installed on the host computer, enabling users to remotely control device access and manage operational features. With this software, users can:
- Enable or disable individual or all ports on the USB Hub.
- Reboot the USB Hub.
- Set a password to restrict unauthorized access.
- Save port states for quick setup in specific applications.
- Utilize Command Line Interface (CLI) commands for command-line operation or custom application development.

The software is compatible with Windows, macOS, and Linux, making it versatile across different platforms. It supports an unlimited number of Managed USB Hubs, allowing users to connect multiple Hubs to a single host computer or cascade them in sequence.

Rugged and Reliable

The Industrial USB Hub features a rugged heavy-duty metal enclosure designed to shield the hub from potential damage caused by accidental drops or sudden impacts. Moreover, it protects against Electrostatic Discharge (ESD) with 15kV air and 8kV contact Level-4 ESD protection. This robust construction ensures resiliency in demanding industrial environments, providing peace of mind for users in situations where durability and reliability are paramount.

Power Flexibility

The USB Hub offers power flexibility to cater to diverse user needs. It supports a wide voltage range from +7 to 24 volts DC, ensuring compatibility with various power sources. With two DC inputs, featuring both a terminal block and a concentric barrel connector, users can choose to power the USB Hub using either input or both simultaneously for redundancy. With an external power source connected, the USB Hub supports USB battery charging specification 1.2, delivering up to 1.5A (7.5W) on 6 of the downstream ports, so you can power and quickly charge external devices.

For optimal performance an external power source is required. StarTech offers an external power adapter (Part Number: ITB20D3250, sold separately) that will enable the USB Hub to operate at maximum performance.

Mounting Options

The USB Hub is thoughtfully designed for user convenience and adaptability. Equipped with built-in mounting brackets, installation is simplified. The hub may be mounted to a variety of surfaces such as walls or desks. The DIN rail bracket ensures secure mounting in industrial environments.

High-Performance

The rugged USB Hub supports SuperSpeed USB 3.2 Gen 1 (5Gbps) and maintains backward compatibility with legacy peripheral devices. Additionally, the USB Hub offers enhanced security through the USB Event Monitor utility, a feature within the StarTech Connectivity Tools application. This utility logs and timestamps USB port usage, empowering IT administrators to identify potentially malicious devices. For more details and to download the StarTech Connectivity Tools application, please visit: StarTech /Connectivity-Tools

The StarTech Advantage

Specs




Ports & interfaces


Host interface

Interface that enables a host controller to communicate with a driver.

USB 3.2 Gen 1 (3.1 Gen 1) Type-B


Hub interfaces

A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

7


Ports quantity

The number of ports or external interfaces to which other equipment can be connected.

7


Terminal block port




Features


Data transfer rate

Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.

5000 Mbit/s


Product colour

The colour e.g. red, blue, green, black, white.

Black


Housing material

What the casing of the product is made of.

Metal


LED indicators

Power, Status


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Weight & dimensions


Width

The measurement or extent of something from side to side.
4 mm


Depth

The distance from the front to the back of something.

67 mm


Height

The measurement of the product from head to foot or from base to top.

26 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0 g


Packaging data


Package width

The distance from one side of the packaging to the other.

213 mm


Package depth

The distance from the front to the back of the packaging.
9 mm


Package height

The distance from the top to the bottom of the packaging.

51 mm



Packaging data


Package weight

Weight of the packaged product.

500 g


Packaging content


Cables included

USB Type-A to USB Type-B


DIN rail kit included




Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 60 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 75 -C


Operating relative humidity (H-H)

5 - 95%


Performance


Mean time between failures (MTBF)

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
1406 h


Sustainability


Sustainability compliance




Logistics data


Master (outer) case width

520 mm


Master (outer) case length

430 mm


Master (outer) case height

270 mm


Products per master (outer) case

25 pc(s)


Technical details


Compliance certificates

CE, RoHS, Trade Agreements Act (TAA)


Other features


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

VIA - VL817-Q7 C0
