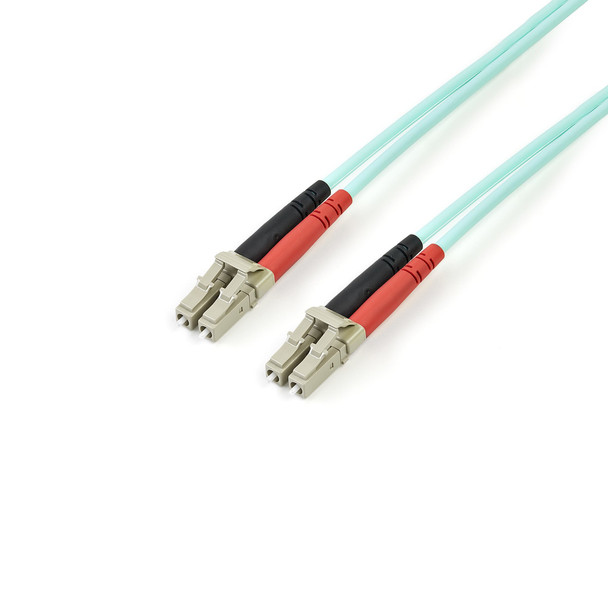

StarTech.com Aqua OM4 Duplex Multimode Fiber Optic Cable - 100 Gb - 50/125 - LSZ 450FBLCLC3

This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in 40 and 100 Gigabit networks. The OM4 cable supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources and is backward compatible with your existing 50/125 equipment.

This Aqua OM4 duplex multimode fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. It's ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each OM4 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

The 450FBLCLC3 from StarTech.com is backed by a lifetime warranty.

Features


OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)


QUALITY CONSTRUCTION: 50/125�m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB


RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards


COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10


SPECS: 3m (9.8ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHz�km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life



Weight & dimensions


Weight

47 g



Logistics data


Harmonized System (HS) code

85447000



Technical details


Doesn't contain

Halogen


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Features


Fiber mode structure

Multi-mode


Core diameter

50 �m


Cable length

3 m


Product colour

Aqua colour


Wavelengths supported

850 nm


Connector 2

LC


Connector 1

LC


Connector 1 gender

Male


Connector 2 gender

Male


Cladding diameter

125 �m


Fibre optic type

OM4


Data transfer rate

100 Gbit/s


Full duplex

Yes


Jacket material

Low smoke zero halogen (LSZH)



Operational conditions


Operating temperature (T-T)

-20 - 60 �C


Storage temperature (T-T)

-20 - 60 �C



Packaging data


Package height

15 mm


Package depth

220 mm


Package width

200 mm


Package weight

54 g
