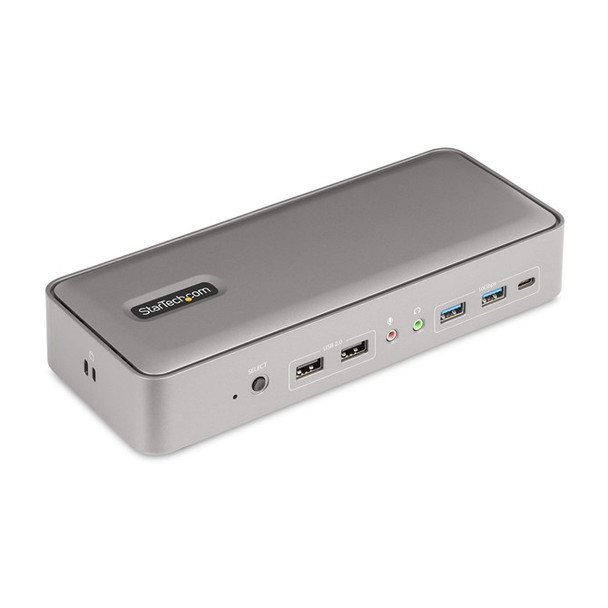

StarTech.com Dual-Laptop USB-C KVM Docking Station Dual Monitor 4K 60Hz DisplayP 129UE-USBC-KVM-DOCK

Share a dual 4K 60Hz workstation between two laptop computers through a USB Type-C connection

Dock and Switch between two laptops to access your workstation peripherals including dual monitors, seamlessly switching between laptop computers with the push of a button. The downloadable Hot-Key software (available for Windows and macOS), enables users to switch between computers using key combinations from a keyboard.

DisplayLink Certified

The Dock is DisplayLink Certified, for Plug and Display compatibility with Windows, ChromeOS, and macOS, enabling operation and switching between multiple computers with different operating systems. DisplayLink technology also supports extended dual displays on base Apple M-Series MacBooks, which are not natively capable of driving more than one external display. The DisplayLink Certification ensures support for resolutions up to 4K 60Hz on both external displays.

Simultaneously Charge Two Laptops

The KVM Dock supports Power Delivery (PD) 3.0 and charges both connected computers over USB-C. The Dock supplies 90W of power to the active host computer and 45W of power to the second PC, ensuring both laptops can charge simultaneously.

Full-Featured Docking Station

Connect two USB-C computers to this Dock to access a wide range of port connectivity, options and features. The Dock features:
- 2x DisplayPort ports for dual display output with support for resolutions up to dual 4K 60Hz.
- 2x USB-A (USB 2.0 480Mbps) HID ports for USB devices, such as a keyboard and mouse.
- 2x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
- 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
- 1x 3.5mm 3-position TRRS jack for stereo audio output.
- 1x 3.5mm 2-position microphone jack for mono audio input.
- 2x K-Slots (regular/nano) to tether the Dock with a cable lock (sold separately) for security.

The Dock features a mounting pattern so it can be mounted when paired with StarTech.com mounting accessories (sold separately). Our mounting accessories enable mounting to the VESA pattern on the back of a monitor or to any flat surface. The following mounts are compatible with this product:
- SSPMSUDWM - Dock Surface Mount
- SSPMSVESA - Dock VESA Mount

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
-

Advanced Windows Layout Utility : Setup and save custom windows layouts.

-

Mac Address Pass-Through Utility : Improve network security.

-

USB Event Monitoring Utility : Track and log connected USB devices.

-

Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Note: The StarTechLink software is not compatible with Linux; however, the base hardware KVM functionality is supported. Linux users will not have access to the following software features:
- Set Laptop Screen Location for Mouse Cursor/Keyboard Edge Scrolling.
- Switch UFP (Upstream Facing Port).
- Ctrl-Alt-Del Functionality.
- Change Hot-Key for Switching.
- KM Master for Mouse Cursor/Keyboard Edge Scrolling.

The StarTech.com Advantage

Specs




Ports & interfaces


Number of computers controlled

The amount of computers controlled by this device.

2


Keyboard port type

The type of socket in the device for connecting a keyboard e.g. USB.

USB


Mouse port type

USB


Video port type

The type of socket in the device for connecting a video e.g. SCART.

DisplayPort


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

2


DisplayPort version

1.4


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

3


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2


Audio connections

Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.




Headphone outputs

Number of sockets /ports where headphones are connected.

1


Number of microphone inputs

1


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Performance


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160 pixels


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F


Design


Product colour

The colour e.g. red, blue, green, black, white.

Silver


Housing material

What the casing of the product is made of.

Plastic


LED indicators

LAN, Power


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Display


Built-in display

A display which is part of the product, so you do not need to attach another display.




Power


Input voltage

The voltage (V) which is required to power the product.
0 - 240 V


Input current

2.4 A


Output voltage
V


Output current

9 A


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
0 W


External power adapter





Power


Compatible power plug types

EU, UK


USB Power Delivery (USB PD)




USB Power Delivery up to

90 W


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64


Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04


Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Other operating systems supported

ChromeOS


Sustainability


Sustainability compliance




Compliance certificates

RoHS


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-10 - 45 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 -C


Operating relative humidity (H-H)

0 - 90%


Weight & dimensions


Width

The measurement or extent of something from side to side.

90 mm


Depth

The distance from the front to the back of something.

224 mm


Height

The measurement of the product from head to foot or from base to top.

40 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

402 g


Packaging data


Package width

The distance from one side of the packaging to the other.
0 mm


Package depth

The distance from the front to the back of the packaging.

285 mm


Package height

The distance from the top to the bottom of the packaging.

90 mm


Package weight

Weight of the packaged product.

1.8 kg


Packaging content


Cables included

AC, USB Type-C


Quick installation guide




AC adapter included




Logistics data


Master (outer) case width

395 mm


Master (outer) case length

380 mm


Master (outer) case height

340 mm


Products per master (outer) case

6 pc(s)
