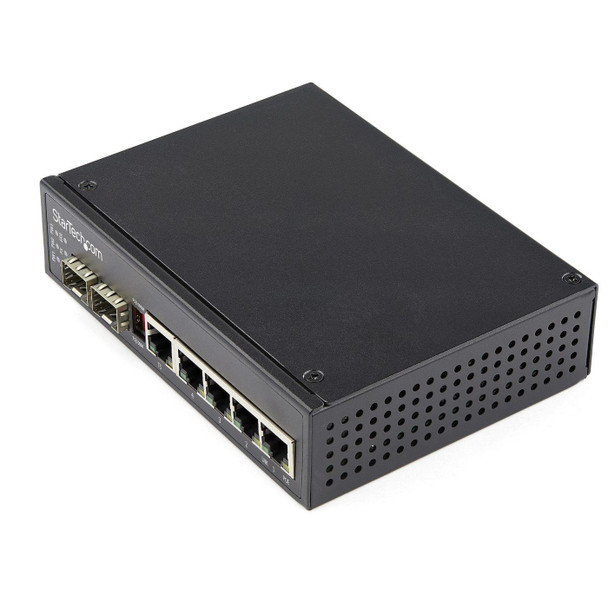

StarTech.com IES1G52UPDIN Industrial 6 Port Gigabit IES1G52UPDIN

Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 48V DC | DIN Rail MountableEasily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.Power Over Ethernet & 48V VoltageWith a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:• Cameras• Sensors• Wi-Fi access pointsUses Cat 5e (or higher rated) Ethernet cabling.Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.• Vibration: EN 60068-2-6• Shock: EN 60068-2-27• Free-Fall: EN 60068-2-32500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.Dual Power InputsDual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Data transmission



Jumbo frames



9000


Jumbo frames support



Yes


Packet buffer memory



1 MB


Switching capacity



12 Gbit/s


Design



Certification



CE, RoHS, FCC, UL


DIN rail mounting



Yes


Housing material



Steel


International Protection (IP) code



IP30


LED indicators



Link, PoE, Power


Product colour



Black


Rack mounting



No


Safety



EN60950-1, MET (UL) 60950-1


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case height



22.5 cm


Master (outer) case length



34.5 cm


Master (outer) case width



35.5 cm


Products per master (outer) case



10 pc(s)


Management features



Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Copper ethernet cabling technology



10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 °C


Storage temperature (T-T)



-40 - 85 °C


Other features



Terminal block port



Yes


Package dimensions



Depth (package,cm)



16.2 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



6.4 cm


Width (package,cm)



21.1 cm


Packaging data



Quick start guide



Yes


Terminal block included



Yes


Performance



Mean time between failures (MTBF)



525058 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP module slots quantity



2


Power



DC input voltage



48 - 56 V


Power consumption (max)



126 Watt


Surge protection



Yes


Surge protection voltage



2 kV


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet plus (PoE+) ports quantity



4


Total Power over Ethernet (PoE) budget



120 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



14.2 cm


Product Height



3.62 cm


Product Width



10.5 cm


Protocols



Supported network protocols



CSMA/CD


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
