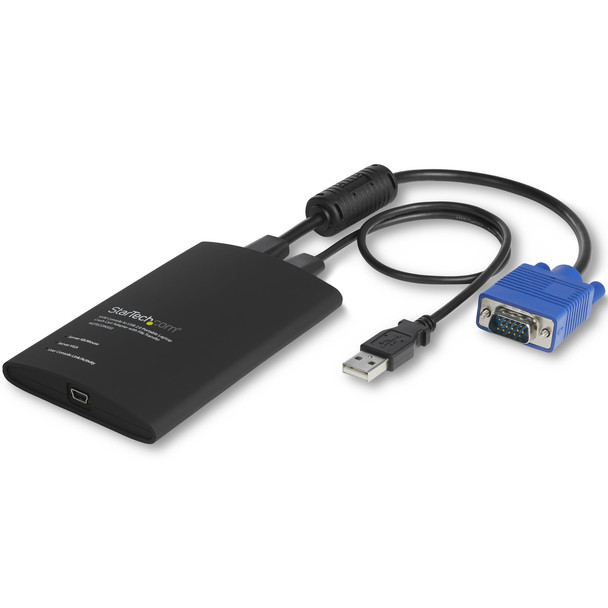

StarTech.com KVM Console to Laptop USB 2.0 Portable Crash Cart Adaptor with File NOTECONS02

Portable KVM Console | VGA Video | 1920 x 1200 60Hz | Cables Included

The USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.

Instant System Access

Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. With no server-side software required, you can be up and running instantly.

Troubleshoot More Efficiently

With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.

Self-Powered Reliability

Powered from the server-side USB connection, the KVM adapter doesn't require an AC outlet so you can connect to any PC or device that has a VGA and USB port, even if there's no power outlet available.

Take It Anywhere

This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.

StarTech.com offers a wide selection of high-quality KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM crash cart adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Access any VGA and USB system directly from your laptop via the KVM console adapter
- Set up quickly with included cables and instant BIOS-level control
- Share troubleshooting information and display errors with video capture at 1920 x 1200 60Hz

Features


Compact footprint with integrated KVM cables


Supports file sharing between your laptop and the connected server


Instant BIOS-Level control


Supports resolutions up to 1920x1200


Self-powered - Draws from the server USB connection


LED indicators for USB link, Host Video link, and Host Keyboard/Mouse Link


Automatic video scaling when re-sizing the viewing pane - no scroll bars


Snapshot feature allows you to capture screen shots


Manual video adjustments to control the picture position, sharpness and image noise for optimal performance


Pre-loaded special key commands



Other features


Compatible operating systems

Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) Windows Server 2012, 2008 R2 Mac OS 10.x (Tested up to 10.9) Linux 2.6.x - 3.5.x (32/64bit)



Ports & interfaces


Number of computers controlled

1


USB connector type

Mini-USB B


Audio connections

No


Keyboard port type

USB


Mouse port type

USB


Video port type

VGA


Console USB ports quantity

1



System requirements


Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura


Linux operating systems supported

Yes



Design


Mean time between failures (MTBF)

909000 h


Product colour

Black


Cable length

0.416 m


Rack mounting

No


Housing material

Plastic


Certification

CE, FCC, TAA, UL


LED indicators

Yes



Weight & dimensions


Height

15 mm


Width

74 mm


Depth

115 mm


Weight

170 g



Packaging content


Software included

Yes


Cables included

USB



Logistics data


Master (outer) case width

320 mm


Master (outer) case height

525 mm


Products per master (outer) case

30 pc(s)


Harmonized System (HS) code

85176200


Master (outer) case length

520 mm



Sustainability


Sustainability certificates

RoHS



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 80


Storage temperature (T-T)

-40 - 70 �C



Performance


Video bandwidth

60 Hz


Maximum resolution

1920 x 1200 pixels


Number of users

1 user(s)


HD type

Full HD


Plug and Play

Yes


Daisy chain

No



Power


Power source

USB



Display


Built-in display

No


On Screen Display (OSD)

No



Packaging data


Package height

46 mm


Package depth

303 mm


Package width

166 mm


Package weight

363 g
