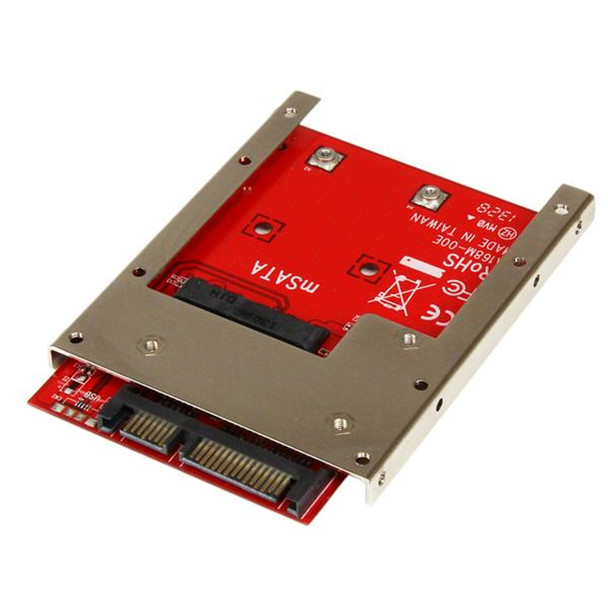

StarTech.com mSATA SSD to 2.5 " SATA Adaptor Converter SAT32MSAT257

Vastly increase system performance by adding the speed of an mSATA SSD in any 2.5" SATA application, with the SAT32MSAT257 mSATA to SATA adapter.

Utilize the full potential of your SATA III controller, with an mSATA SSD reducing your DATA transfer bottle neck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.

Help protect the health of your drive with an open frame design ensuring maximum heat dissipation.

The SAT32MSAT257 is backed by a StarTech.com 2-year warranty, and lifetime technical support.

The StarTech.com Advantage
- Maximize system speed by adding SSD performance
- Help prevent your drive from failure, with open frame aluminum housing providing excellent heat dissipation
- Reduce overall power consumption, with a high efficiency mSATA SSD

Features


Open frame aluminum bracket


Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)


Supports 7mm or larger 2.5 SATA bays


2.5in SATA form factor housing


Supports full length mSATA SSD Solid State Drives



Design


Internal

Yes


Product colour

Black, Red, Silver


Certification

CE, FCC



Weight & dimensions


Height

7 mm


Width

70 mm


Depth

100 mm


Weight

48 g



Logistics data


Harmonized System (HS) code

84733020



Technical details


Sustainability certificates

RoHS



Features


Data transfer rate (max)

6 Gbit/s



Operational conditions


Operating temperature (T-T)

-40 - 85 �C



Ports & interfaces


Host interface

SATA


Output interface

mSATA


SATA revision

3.0



System requirements


Windows operating systems supported

Yes


Mac operating systems supported

Yes


Linux operating systems supported

Yes



Packaging data


Mounting brackets included

Yes


Package height

3 mm


Package depth

144 mm


Package width

174 mm


Package weight

33 g


Manual

Yes
