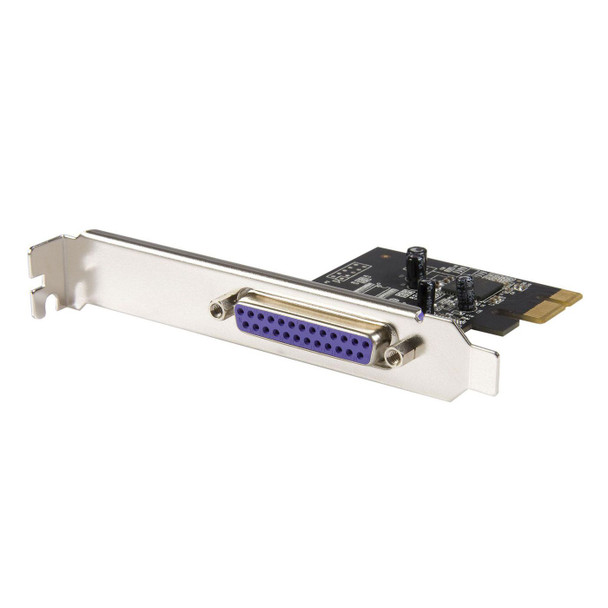

StarTech.com PEX1P2 1-Port Parallel Pcie Card - PEX1P2

PCI Express 2.0 | LPT | PCIe 1x Slot | 2.5 Mbps | Lifetime Warranty

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.

Adds a Parallel Port to Your Desktop Computer

The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.

Wide Installation Compatibility

This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).

PEX1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

The StarTech.com Advantage

- 1-PORT PARALLEL PCIe CARD: Using a 1x PCI Express 2.0 Gen 1 slot, add a DB25 parallel communications port to your computer; Installs in full/standard or low profile PCIe cards slots (brackets incl.); Latest version of our popular parallel card PEX1P
- TECH SPECS: Parallel port LPT controller card supports SPP/Byte/Nibble/ECP modes
- Compatible with IEEE 1284

Design



Internal



Yes


Mean time between failures (MTBF)



26297 Hour


Product colour



Black, Steel


Features



Chipset



PLX/Oxford - OXPCIe952


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



33 cm


Master (outer) case length



40 cm


Master (outer) case width



61 cm


Products per master (outer) case



80 pc(s)


Other features



Data transfer rate



2.5 Mbit/s


Material



Steel


Package dimensions



Depth (package,cm)



17 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3 cm


Width (package,cm)



14.3 cm


Packaging data



Drivers included



Yes


Manual



Yes


Mounting brackets included



Yes


Ports & interfaces



Expansion card standard



PCIe 1.0a


Host interface



PCIe


Output interface



Parallel


Parallel ports quantity



1


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



21 cm


Product Height



12 cm


Product Width



11 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Sustainability certificates



CE, RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
