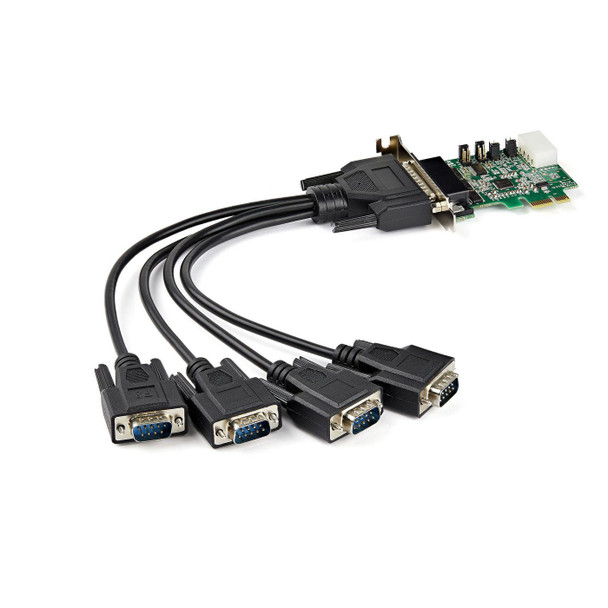

StarTech.com PEX4S953LP 4-Port Pci Express Rs232 PEX4S953LP

PCI Express to Serial Adapter | 921.6Kbps | Windows and Linux Compatible

This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with low-profile brackets and includes optional full-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX4S952LP.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

Compatible with industry-standard 16950 UART

Supports max baud rate of up-to 921.6Kbps

Provides 5/12V power output on Pin 9 when external power is connected

256-byte depth FIFO cache per transmitter and receiver

Supports 9, 8, 7, 6, 5 data bits (one per port)

Asix AX99100 chipset

PCI Express 1.1 compliant

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

PEX4S03LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- Install in home or office workstations
- Connect to automated self-service kiosks or ATM machines
- Connect in retail POS applications
- Connect serial printers and other legacy devices to modern computers

Design



Certification



CE, FCC


Internal



Yes


Mean time between failures (MTBF)



214358 Hour


Product colour



Green


Features



Baud rate



921.6 Kbit/s


Chipset



Asix AX99100


Data bits



5, 6, 7, 8, 9


FIFO (First In, First Out)



256 B


Flow Control type



N, No, RTS/CTS, XON/XOFF


Parity bit



Even, Mark, N, No, Odd, Space


Stop bits



1, 1.5, 2


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



23.5 cm


Master (outer) case length



35 cm


Master (outer) case width



48 cm


Products per master (outer) case



16 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 85 %


Operating temperature (T-T)



-10 - 80 �C


Storage temperature (T-T)



-20 - 100 �C


Package dimensions



Depth (package,cm)



14.9 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



5.1 cm


Width (package,cm)



21.3 cm


Packaging data



Cables included



Serial


Mounting brackets included



Yes


Quantity



1


Quick installation guide



Yes


Ports & interfaces



Expansion card standard



PCIe 1.1


Host interface



PCIe


Output interface



Serial


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



6.3 cm


Product Height



1.8 cm


Product Width



7.5 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
