Startech.Com

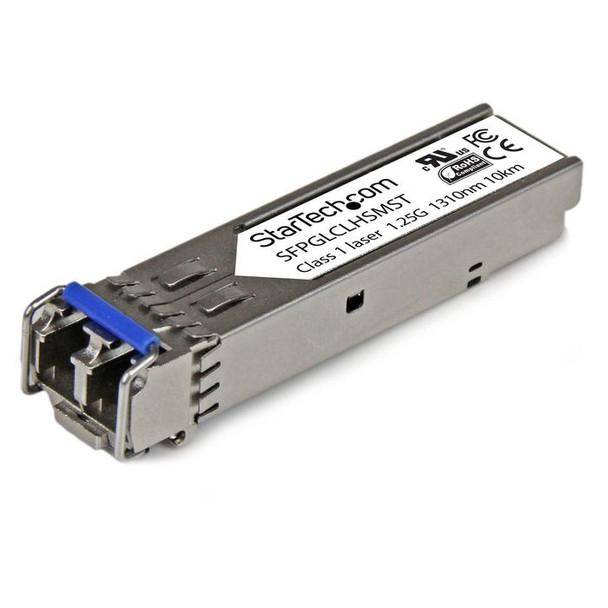

StarTech.com SFPGLCLHSMST GB FIBER SFP TRANSCEIVER SM LC SFPGLCLHSMST
(No reviews yet)
Write a Review
- UPC:
- 0065030850643
- MPN:
- SFPGLCLHSMST
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFPGLCLHSMST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310 nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode / Multimode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
MTBF: 3,092,408 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% CISCO GLC-LH-SM COMPATIBLE: Works with Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400 and others
- TECHNICAL SPECS: 1000BASE-LX/LH
- 1 Gbps
Features
Certification
CE, FCC, UL
Hot-swap
Yes
Mean time between failures (MTBF)
3092408 Hour
Product colour
Stainless steel
Logistics data
Harmonized System (HS) code
85369010
Master (outer) case height
21.1 cm
Master (outer) case length
30.3 cm
Master (outer) case width
25.1 cm
Products per master (outer) case
36 pc(s)
Operational conditions
Operating relative humidity (H-H)
30 - 70 %
Operating temperature (T-T)
0 - 70 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Depth (package,cm)
9.3 cm
Gross Weight (Package, kg)
0.046 kg
Height (package,cm)
3.3 cm
Width (package,cm)
11.9 cm
Packaging data
Number of products included
1 pc(s)
Performance
Digital Diagnostics Monitoring (DDM)
No
Duplex system
Full, Half
Fiber optic connector
LC
Interface type
SFP
Maximum data transfer rate
1250 Mbit/s
Maximum transfer distance
10000 m
Multi-mode fiber (MMF) supported
Yes
Networking standards
IEEE 802.3z
SFP transceiver standard
LH, LX
SFP transceiver type
Fiber optic
Wavelength
1310 nm
Wavelength-division multiplexing (WDM)
No
Power
Power consumption (typical)
1 Watt
Product dimensions
Net Weight (Product, kg)
0.01 kg
Product Depth
6 cm
Product Height
1 cm
Product Width
1.2 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
