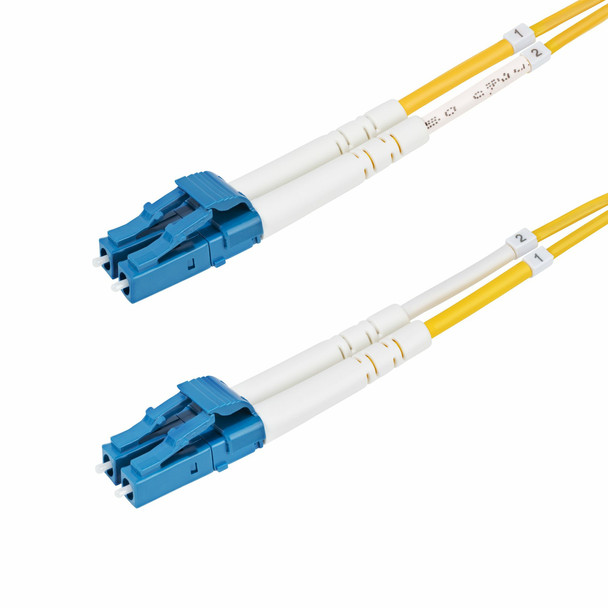

StarTech.com SMDOS2LCLC20M 20 m LC/UPC OS2 LC LC SMDOS2LCLC20M

StarTech.com SMDOS2LCLC20M. Cable length: 20 m, Cable type: LC/UPC, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 m, Full duplex

Weight & dimensions


Bending radius

1 cm


Cable diameter

2 mm



Logistics data


Master (outer) case width

380 mm


Master (outer) case height

280 mm


Products per master (outer) case

56 pc(s)


Master (outer) case length

380 mm



Technical details


Sustainability compliance

Yes


Sustainability certificates

CE



Other features


Attenuation (max)

0.35 dB/km



Features


Fiber mode structure

Single-mode


Core diameter

9 -m


Return loss

55 dB


Cable length
m


Product colour

Yellow


Wavelengths supported
60,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm


Connector 2

LC


Connector 1

LC


Connector 1 gender

Male


Connector 2 gender

Male


Cladding diameter
5 -m


Fibre optic type

OS2


Cable type

LC/UPC


Data transfer rate
Gbit/s


Insertion loss

0.3 dB


Full duplex

Yes


Jacket material

Low smoke zero halogen (LSZH), Polypropylene


Connector polish type

UPC



Operational conditions


Operating temperature (T-T)

-20 - 60 -C


Storage temperature (T-T)

-20 - 60 -C



Packaging data


Package height
mm


Quantity per pack

1 pc(s)


Package depth

220 mm


Package width
0 mm


Package weight
6.5 g
