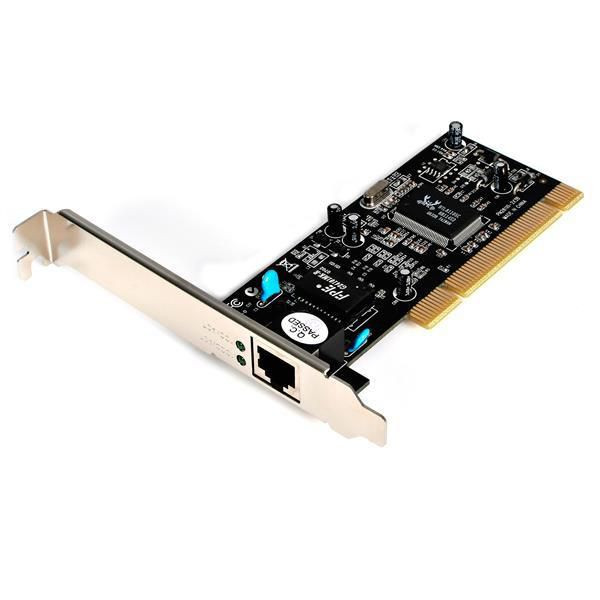

StarTech.com ST1000BT32 PCI 32 BIT GB ETHERNET CARD ST1000BT32

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI slot

This PCI-based 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards.

Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, 98SE, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.

The StarTech.com Advantage

- Add feature rich Gigabit networking through a PCI slot, suitable for a desktop, workstation or sever use
- Dual profile design to fit into Full or Low Profile/small form factor (SFF) systems
- Backed by a StarTech.com lifetime warranty and free lifetime technical support

Design



Certification



CE, FCC, REACH


Chipset



Realtek - RTL8110SC


Component for



PC


Internal



Yes


LED indicators



10/100/1000 Mbits/sec Link/Activity


Mean time between failures (MTBF)



36000 Hour


Logistics data



Harmonized System (HS) code



85176990


Network



Auto MDIX IEEE



Yes


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Full duplex



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.11u, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Supported network protocols



CSMA/CD


VLAN tagging



Yes


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



0 - 55 �C


Package dimensions



Depth (package,cm)



14.3 cm


Gross Weight (Package, kg)



0.142 kg


Height (package,cm)



3 cm


Width (package,cm)



17 cm


Packaging content



Manual



Yes


Packaging data



Drivers included



Yes


Low-profile bracket



Yes


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Host interface



PCI


Interface



Ethernet


PCI version



2.2


Product dimensions



Net Weight (Product, kg)



0.04 kg


Product Depth



12.3 cm


Product Height



6.3 cm


Product Width



2 cm


Sustainability



Sustainability certificates



RoHS


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.4 Tiger


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows ME, Windows NT, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
