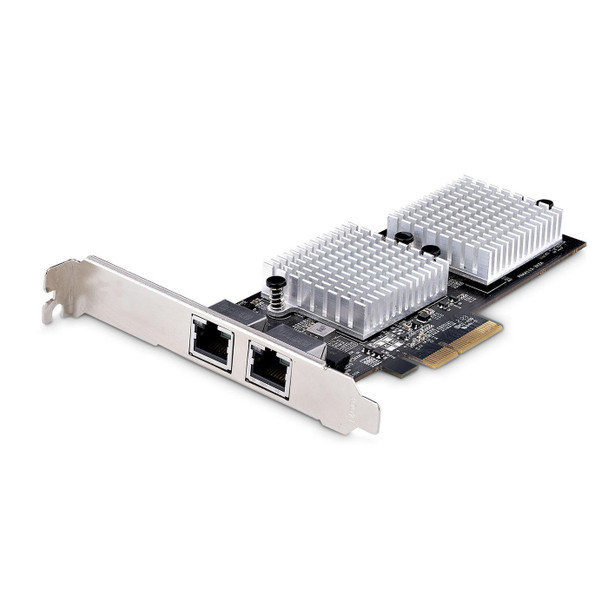

StarTech.com ST10GSPEXNDP2 2-Port 10Gbe Pcie Network ST10GSPEXNDP2

AVB | PXE Boot | PCIe 3.0 x4 | Marvell AQC113CSInstall this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco�; HPE�; and Aruba Networks�.10GbE Network SpeedsThis PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.Enhance Existing HardwareNBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).The PCIe 10GbE NIC is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Design



Chipset



Marvell AQC113CS


Component for



PC/Server


Internal



Yes


LED indicators



Activity, Link, Status


Product colour



Black


Logistics data



Master (outer) case height



31.5 cm


Master (outer) case length



37 cm


Master (outer) case width



44 cm


Products per master (outer) case



40 pc(s)


Network



Auto MDIX IEEE



Yes


Cabling technology



10GBase-T


Ethernet interface type



2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000, 2500, 5000, 10000


Full duplex



Yes


Jumbo frames



16000


Jumbo frames support



Yes


Maximum data transfer rate



10000 Mbit/s


Maximum operating distance



100 m


Networking standards



IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u


VLAN tagging



Yes


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



5 - 50 �C


Storage temperature (T-T)



-10 - 60 �C


Package dimensions



Depth (package,cm)



21.5 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3.5 cm


Width (package,cm)



14.5 cm


Packaging content



Mounting brackets included



Yes


Quick installation guide



Yes


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Host interface



PCI Express


Interface



Ethernet


PCI Card form factor



Full-height (low-profile)


PCI version



3.0


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



14.5 cm


Product Height



6.5 cm


Product Width



2 cm


Sustainability



Sustainability certificates



CE


Sustainability compliance



Yes


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
