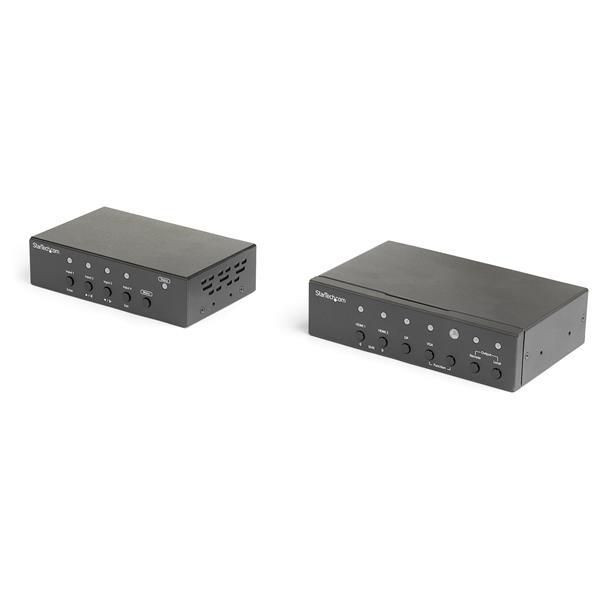

StarTech.com ST121HDBTSC Multi-Input Hdbaset Extender ST121HDBTSC

Connect four video sources to a remote HDMI display over CAT5e/CAT6 cabling, and easily scale and switch between HDMI, DP or VGA video sourcesThis multi-input HDBaseT� extender kit extends your A/V signals to a remote location up to 230 ft. (70 m) away. It features a built-in switch and scaler, so you can choose which video source is output from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).Seamless Integration and OperationThe HDBaseT extender�s built-in converter switch lets you connect two HDMI sources, a VGA source, and a DP source to the same remote and local HDMI display. You don�t need adapters or scalers, or a video switch.Along with manually switching your video source with easy-to-use buttons, the video extender ensures hassle-free operation with two auto-switching modes: auto-detect switching, which detects and selects a newly connected device, and priority selection, which lets you choose which port is activated by default, for automatic switching.Built-In Video ScalingThis HDBaseT extender features a built-in scaler that scales the image to 1080p, so you can rest assured your HDMI display will intuitively work with any source that�s connected through it. Scaling is easy to do, with an intuitive OSD that's accessible using buttons on the remote receiver. Newer HDMI displays no longer support legacy resolution video signals. Without support for these common VGA resolutions, your source may not work with your new HDMI display.High-Definition 1080p Video at 230 Feet (70 Meters)The extender kit maintains your HD picture quality, even at 230 ft. (70 m) away from your video source, ensuring you can provide the best possible viewing experience.The ST121HDBTSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

Features



Audio output channels



2.0 channels


Cable types supported



Cat5e, Cat6


Certification



CE, FCC, TAA


Daisy chain



No


HDCP & EDID bypass



Yes


LED indicators



Yes


Material



Aluminium


Maximum refresh rate



60 Hz


Maximum resolution



1920 x 1200 Pixels


Maximum transfer distance



70 m


Product colour



Black


Rack mounting



Yes


Rubber feet



Yes


Supported graphics resolutions



640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)


Type



AV transmitter & receiver


Logistics data



Master (outer) case height



27 cm


Master (outer) case length



49.5 cm


Master (outer) case width



38.5 cm


Products per master (outer) case



6 pc(s)


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-10 - 60 �C


Package dimensions



Depth (package,cm)



16 cm


Gross Weight (Package, kg)



0.59 kg


Height (package,cm)



4 cm


Width (package,cm)



9.8 cm


Packaging content



AC adapter included



Yes


Cables included



LAN (RJ-45), Phone (RJ-11)


Included power plug types



ANZ, EU, JP, NA, UK


IR blaster included



Yes


IR receiver included



Yes


Mounting brackets included



Yes


Quick start guide



Yes


Remote control included



Yes


Ports & interfaces



3.5 mm (1/8-inch) in



Yes


AUX in



Yes


Connectivity technology



Wired


DC-in jack



Yes


DisplayPorts in



1


HDMI in



2


Number of HDMI outputs



2


Remote (IR) input



2


Remote (IR) output



2


RJ-11 ports quantity



2


RJ-45 input ports



1


RJ-45 output ports



1


VGA (D-Sub) input ports



1


VGA (D-Sub) ports quantity



1


Power



AC input voltage



100 - 240 V


External power adapter



Yes


Input current



0.6 A


Operating voltage



12 V


Output current



1.5 A


Power consumption (typical)



18 Watt


Power plug type



Type M


Product dimensions



Net Weight (Product, kg)



0.45 kg


Product Depth



0.37 cm


Product Height



0.08 cm


Product Width



0.24 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
