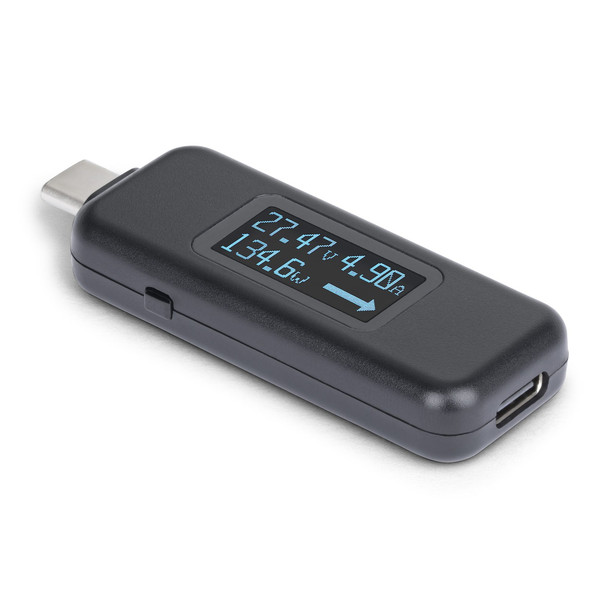

StarTech.com USB-C Power Tester Digital Multimeter Bi-Directional Voltage and Cu USBC-PWRTESTER

Test and verify USB-C power connections with this compact bi-directional USB-C Power Tester

This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.

Compact Form Factor

The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential additional to any IT Pro's toolkit.

Streamline Power Diagnostics

This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.

Versatile USB-C Compatibility

Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.

The StarTech.com Advantage

Features


PORTABLE USB-C POWER TESTING: Measure Voltage, Current, and Wattage in any direction with this bi-directional USB-C Power Tester; Digital display w/180 flip rotation provides real-time at-a-glance readings; Portable design ideal for IT Pros on-the-go


SIMPLIFY TROUBLESHOOTING: Quickly identify Power Delivery issues between USB-C docking stations, chargers/hubs, and connected devices; Test USB-C cables to ensure full power transmission from USB-C sources; Validate performance of high-power devices


UNIVERSAL COMPATIBILITY: Supports USB data pass-through up to 10Gbps, including DP Alt Mode video (backward compatible); Measures up to 4.5V-50V/50mA-6.5A operating range, and 240W USB Power Delivery 3.1 Extended Power Range (EPR)


APPLICATIONS: Test USB-C charging stations, verify power delivery across devices & diagnose port or cable issues; Measure power draw from bus-powered USB-C devices; Ensure USB-C port compliance w/VBUS & voltage drop tests


SPECS: Bi-directional USB Type-C Male to Female; Digital display with 180 flip rotation; Voltage/Current Range: 4.5V-50V / 50mA-6.5A; Up to 240W USB PD 3.1 EPR; USB 10Gbps Data Pass-Through w/DP Alt Mode; Not compatible with Thunderbolt 3 devices



Weight & dimensions


Package height
mm


Package depth

84 mm


Package width

80 mm


Package weight

28 g


Height
mm


Width

57 mm


Depth

23 mm


Weight
g



Logistics data


Master (outer) case width

430 mm


Master (outer) case height

270 mm


Products per master (outer) case
0 pc(s)


Master (outer) case length
0 mm



Technical details


USB version

3.2 Gen 2 (3.1 Gen 2)


Built-in display

Yes


Backlight colour

Blue


Input current

0.05 - 6.5 A


Product colour

Black


Backlight display

Yes


Maximum charging test

240 W


Compliance certificates

RoHS


Housing material

Polycarbonate (PC)


Power connectors supported

USB Type-C


Host interface

USB 3.2 USB Type C


DC output voltage test

4.5V-50V


Output interface

USB 3.2 USB Type C


DC input voltage test

4.5V-50V


Output current

6.5 A


Testing type

Amperage, Voltage, Wattage



Operational conditions


Operating temperature (T-T)

0 - 40 C


Operating relative humidity (H-H)

5 - 95


Storage temperature (T-T)

-20 - 85 C
