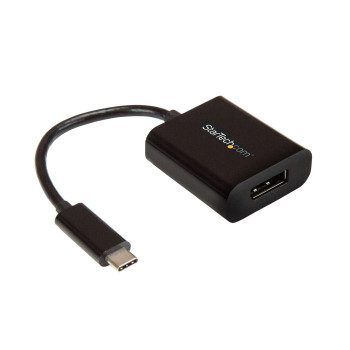

StarTech.com USB C to DisplayPort Adapter - 4K 60Hz/8K 30Hz - USB Type-C to DP 1 CDP2DP

4K 60Hz & 8K 30Hz | DP 1.4 | HBR2 | Thunderbolt 3 Compatible

This USB-C- to DisplayPort adapter enables you to output DP video and audio from the USB Type-C- port on your laptop or other device. The DP 1.4 adapter works with USB-C devices that pass a DisplayPort (DP) video signal, such as your MacBook Pro, Chromebook- or 2018 iPad Pro. This enables you to connect your DisplayPort display to your USB-C computer using a DisplayPort cable.

IT Pro Performance

This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.

Ultra HD 4K & 8K Resolution

The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.

With this adapter, you can also achieve an output resolution of up to 7680x4320 at 30Hz, which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.

Ultimate Portability

This USB Type-C video adapter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag. The adapter is the perfect accessory for connecting your MacBook Pro or Dell XPS- to a DisplayPort monitor or display in BYOD (Bring Your Own Device) applications at the office.

Hassle-Free Connection with USB Type-C

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so it doesn't matter which way you plug it in, the adapter will always work, saving you the hassle and embarrassment of adjusting your device when you're trying to deliver a presentation.

The CDP2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Notes:
- Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
- This adapter outputs a single-mode DisplayPort signal and will not work with additional video adapters such as DisplayPort to HDMI, DisplayPort to VGA or DisplayPort to DVI adapters

The StarTech.com Advantage

Specs




Performance


USB connector type

The type of USB connector/port that this product has.

USB Type-C


USB connector gender

Male


USB connector form factor

Straight


DVI output




HDMI output

The device features an HDMI output.




DisplayPort output

The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data.




Number of displays supported

The number of displays that can be used with this product.

1


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160 pixels


Refresh rate at maximum resolution

60 Hz


Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
24 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160


Audio output channels

An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1 channels


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

PERICOM - PI3DPX1203, NXP - PTN5100


Certification

CE, FCC, REACH


Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Integrated USB cable




Weight & dimensions


Width

The measurement or extent of something from side to side.

37 mm



Weight & dimensions


Depth

The distance from the front to the back of something.
0 mm


Height

The measurement of the product from head to foot or from base to top.
mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
g


USB cable length

0.14 m


Packaging data


Package width

The distance from one side of the packaging to the other.
5 mm


Package depth

The distance from the front to the back of the packaging.

225 mm


Package height

The distance from the top to the bottom of the packaging.
mm


Package weight

Weight of the packaged product.

26 g


Technical details


Compliance certificates

RoHS


Logistics data


Products per master (outer) case
0 pc(s)


Master (outer) case width

327 mm


Master (outer) case length

504 mm


Master (outer) case height

222 mm


Harmonized System (HS) code

84733020
