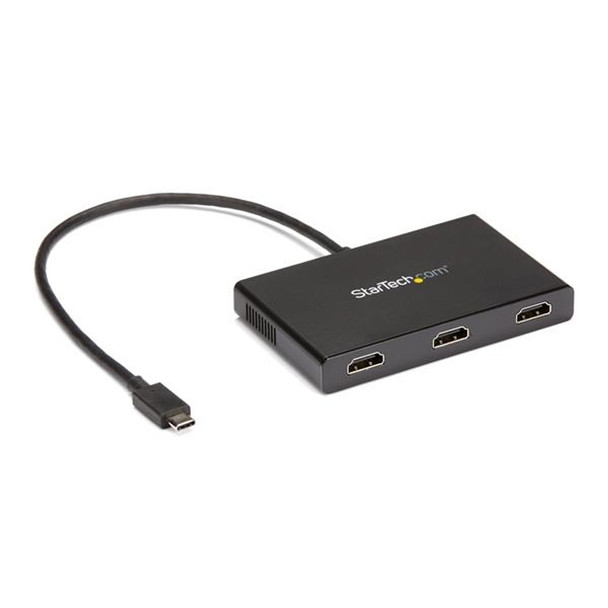

StarTech.com USB-C to HDMI 3-Port MST Hub Black MSTCDP123HD

Multi-Monitor Video Splitter | Windows | Thunderbolt 3 Compatible

This 3-port USB-C to HDMI MST hub lets you connect three HDMI monitors to your USB Type-C Windows device, conveniently helping you to increase and maximize your productivity.

Multi-tasking Made Easy

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect three displays to your USB-C computer, making multi-tasking much easier.

Using this USB-C to HDMI video splitter, you can mirror your display onto additional monitors or stream independent content to each display which makes it the ideal accessory for travel or hot-desking.

Astonishing Picture Quality

MST technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for up to two monitors simultaneously. Plus, because the USB-C hub can output HD 1080p on three independent displays, it's perfect for all high-resolution applications such as graphic design and medical imaging.

Hassle-Free Setup

Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C to HDMI adapter is Thunderbolt 3 compatible and offers for plug-and-play installation with no drivers or software required. Additionally, this triple monitor adapter is powered by the USB-C port, meaning no external power cords are necessary.

MSTCDP123HD is backed by a StarTech.com 3-year warranty, and free lifetime technical support.

The StarTech.com Advantage

- MULTIPLE MONITORS: USB-C to HDMI splitter to drive 2x 4K 30Hz or 3x 1080p 60Hz HDMI displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible
- CONVENIENCE: With a built-in 1ft cable, this bus-powered 3-port MST hub provides an easy method to connect up to three independent screens with any DisplayPort over USB Type-C Windows host device
- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers

Features


MULTI-MONITOR CONFIGURATION: USB Type-C to Triple HDMI adapter/splitter hub drives up to three 1080p 60Hz or two 4K 30Hz monitors using a USB C DP Alt-Mode port on Windows laptops; TB3/TB4/USB4 Compatible; Not compatible with macOS


NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage


HARDWARE COMPATIBILITY: Host system must support DP Alt Mode 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays


Extra-Long CABLE: 1ft (30 cm) built-in cable for extended reach reduces USB-C port/connector strain on 2-in-1 devices like Surface Pro 7/8/9, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces


OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple HDMI Adapter



Design


Integrated USB cable

Yes


USB cable length

0.3 m


Product colour

Black



Weight & dimensions


Package height

62 mm


Package depth

245 mm


Package width

154 mm


Package weight

300 g


Height

15 mm


Width

65 mm


Depth

105 mm


Weight

118 g



Logistics data


Master (outer) case width

330 mm


Master (outer) case height

220 mm


Products per master (outer) case

10 pc(s)


Master (outer) case length

500 mm


Harmonized System (HS) code

84733020



Technical details


Sustainability certificates

RoHS



Operational conditions


Operating temperature (T-T)

0 - 45 �C


Operating relative humidity (H-H)

50 - 90


Storage temperature (T-T)

-20 - 70 �C



Performance


USB connector type

USB Type-C


HDMI output

Yes


Chipset

MegaChips - STDP4320,


Maximum resolution

3840 x 2160 pixels


Refresh rate at maximum resolution

30 Hz


USB connector gender

Male


Supported graphics resolutions

1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160


DVI output

No


DisplayPort output

No


HDMI version

1.4


Number of displays supported

3


Certification

CE, FCC, REACH
