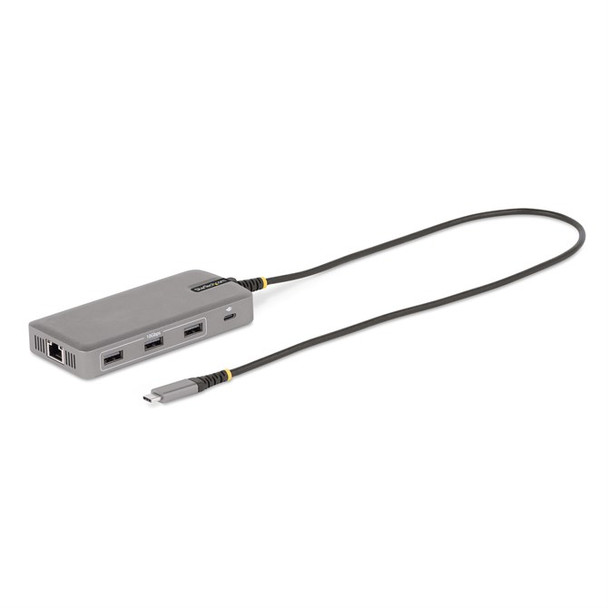

StarTech.com USB-C Triple Monitor Multiport Adapter Dual 4K 60Hz + 4K 30Hz HDMI 117B-USBC-MULTIPORT

Create a mobile workstation with dual or triple 4K video via HDMI and/or DisplayPort (MST support required), three USB-A ports, Gigabit Ethernet and pass-through power delivery to charge the laptop

This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4- port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.

High-Performance Triple Video via MST

The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 60Hz and 2x 4K (3840 x 2160p) at 30Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.

Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.

Connect USB Peripherals

The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).

Extra Long Cable & Durable Build

The mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.
0W Power Delivery

Connect a USB-C power adapter to the pass-through port in order to charge the host laptop.

Reliable Network Connectivity

The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
-

Advanced Windows Layout Utility : To setup and save custom windows layouts.

-

MAC Address Pass-Through Utility : To improve network security.

-

USB Event Monitoring Utility : To track and log connected USB devices.

-

Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage

Specs




Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired


Host interface

Interface that enables a host controller to communicate with a driver.

USB 3.2 Gen 2 (3.1 Gen 2) Type-C


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3


USB Power Delivery (USB PD)




USB Power Delivery revision

3.0


USB Power Delivery up to
0 W


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2


HDMI version

2.0b


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

2


DisplayPort version

1.4


Microphone in

The socket where a microphone is connected to the device.




Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Wake-on-LAN ready




Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Full duplex

A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.




Performance


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Data transfer rate

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
Gbit/s


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD


Maximum digital resolution

3840 x 2160 pixels


Number of displays supported

The number of displays that can be used with this product.

3


Maximum refresh rate

60 Hz


Product colour

The colour e.g. red, blue, green, black, white.

Grey


LED indicators




UASP support





Performance


Housing material

What the casing of the product is made of.

Plastic


Power


Power source type

What the power source is.

USB


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
W


USB cable length

0.6 m


Software


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Other operating systems supported

ChromeOS


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 70 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-10 - 70 -C


Operating relative humidity (H-H)

5 - 90%


Sustainability


Sustainability compliance




Weight & dimensions


Width

The measurement or extent of something from side to side.

56 mm


Depth

The distance from the front to the back of something.
2 mm


Height

The measurement of the product from head to foot or from base to top.
mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
3 g


Packaging data


Package width

The distance from one side of the packaging to the other.
4 mm


Package depth

The distance from the front to the back of the packaging.

241 mm


Package height

The distance from the top to the bottom of the packaging.

32 mm


Package weight

Weight of the packaged product.

210 g


Packaging content


Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Technical details


Compliance certificates

CE, Federal Communications Commission (FCC), RoHS


Logistics data


Products per master (outer) case

24 pc(s)


Master (outer) case width

290 mm


Master (outer) case length

530 mm


Master (outer) case height

235 mm


Other features


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Parade - PS8469, Synaptics - VMM5322, VIA - VL822, VIA - VL103, Realtek - RTL8153
