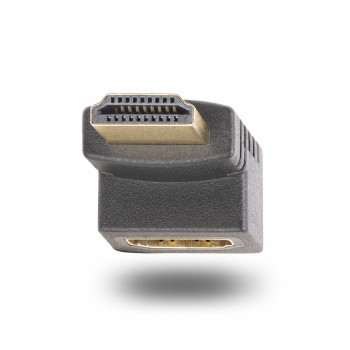

Startech Down Angle Hdmi 2.0 Adapter Male To Female Vertical 90-Degree Angled Hd HDMI2HDMIMFDN

StarTech Down Angle HDMI 2.0 Adapter, Male to Female, Vertical 90-Degree Angled HDMI Port Saver, 4K 60Hz, High Speed HDMI Connector Extension - Compact Down Angle HDMI Adapter reduces connector strain from bending; Bi-directional HDMI 2.0 Port Saver reduces port and connector wear; Ideal for concealed or rear-facing HDMI ports; 4K 60Hz; HDR10/HDCP 2.2/ARC; 7.1 & 32-ch audio; 18Gbps Bandwidth This compact Down-Angled HDMI Adapter acts as a port saver, mitigating strain on HDMI ports and connectors. Ideal for installations with limited depth, it enables access to concealed or rear-facing HDMI ports, and reduces wear and tear resulting from frequent connections. Full HDMI Capability This Down Angle HDMI adapter supports all HDMI 2.0 specifications:Resolutions up to 4K 60Hz High speeds with a bandwidth of up to 18Gbps High Dynamic Range (HDR) for higher contrast ratio and vibrant colors Crystal clear sound with up to 32 channels of digital audio Supports 21:9 cinema aspect ratio and 3D video Backward compatible with previous versions of HDMI Supports Consumer Electronics Control (CEC) Enjoy Optimal Picture Quality Fully compatible with HDMI 2.0 equipment, this HDMI 2.0 Port Saver maintains optimal picture quality at resolutions up to 4K 60Hz and bandwidths up to 18Gbps. Backward compatibility ensures seamless integration with existing HDMI devices.
General Information

Product TypeA/V Adapter
Manufacturer Part NumberHDMI2HDMIMFDN
startech/uk
Packaged Quantity1
ManufacturerStarTech
Product NameHDMI Audio/Video Adapter
Brand NameStarTech

Technical Information

FeaturesWear Resistant
Tear Resistant
HDR10
HDR Support
HDCP 2.2
Down-angled Connector
Consumer Electronics Control (CEC)
Audio Return Channel (ARC)
90?? Angled Connector
Passive
Number of Conductors19
Connector Type on First EndHDMI 2.0 Digital Audio/Video
Connector Type on Second EndHDMI 2.0 Digital Audio/Video
Maximum Resolution Supported3840 x 2160
Adapter TypeHDMI
Connector PlatingGold
Contact PlatingGold
Connector on First End Details1 x HDMI 2.0 Digital Audio/Video - Male
Connector on Second End Details1 x HDMI 2.0 Digital Audio/Video - Female
Connector Gender on First EndMale
Connector Gender on Second EndFemale


Physical Characteristics

Material Details
Textured PVC - Outer Shell

Length30.5 mm
Height15.2 mm
Width20.3 mm
Product ColorBlack
Color FamilyBlack
Product MaterialPolyvinyl Chloride (PVC)
